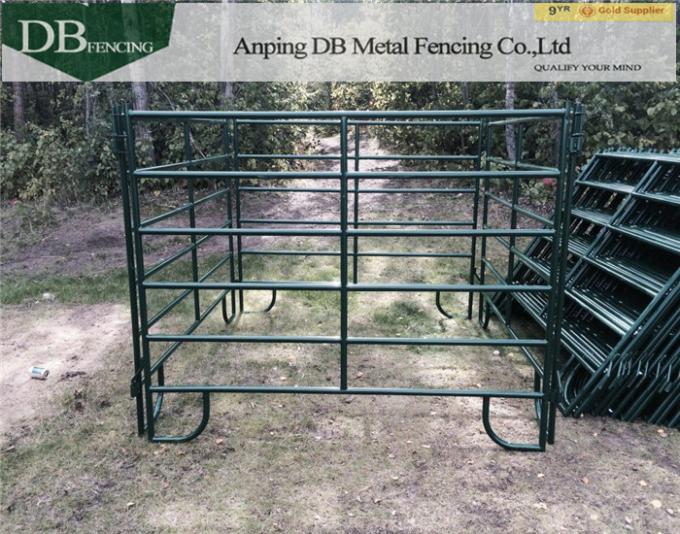

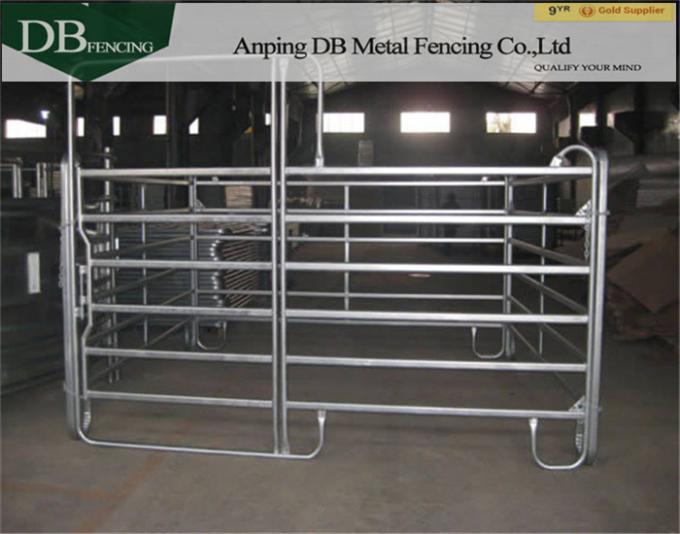

Portable Security 6 Bar Corral Fence Panels Steel Livestock Fencing In Farm

6 Bar Economy Corral Panels

Corral panels, also called cattle panels, horse pen, cow panels or horse fence panels, are popular in farmland of oversea countries, such as Australia, the USA and New Zealand and so on. Because cow panels surface is smooth and there is no sharp edge which can effectively prevent livestock from getting injured.

The Corral Panel is designed with the security of your livestock. This high quality panel has squared corners without sharp edges, and is made of extremely durable with tube that keep your Corral safely enclosed.

1. Corral Panels Specification

Corral panel is designed with horse and rider safety and is ideal for round pen work, exercise, lessons and training. Available in 5′ and 6′ tall configurations, but 6' is recommended for heavy training and breaking. Straight end posts with quick-pin latch for easy hookup. 5′ tall panels available in 10′, 12′ and 16′ lengths. 6′ tall panels only available in 12′.

Panel Size	Tubing O.D. & Wall Thick	Bars No.	Vertical Brace	Accessories	Surface Finish
10 ft. (L) x 5 ft. (H)	2’’ or 1 3/4’’ with 19 Gauge	6	1 pcs of "Z" Brace, u-Support or Tubing Brace	2 pin-latch , and 2 J-legs	Galvanized and Powder Coated
12 ft. (L) x 5 ft or 6 ft. (H)	2’’ or 1 3/4’’ with 19 Gauge	6	2 pcs of “Z” Brace, u-supports or Tubing Brace	2 pin-latch , and 2 J-legs	Galvanized and Powder Coated
16 ft. (L) x 5 ft. (H)	2’’ or 1 3/4’’ with 19 Gauge	6	3 pcs of “Z” Brace, u-supports or Tubing Brace	2 pin-latch , and 2 J-legs	Galvanized and Powder Coated

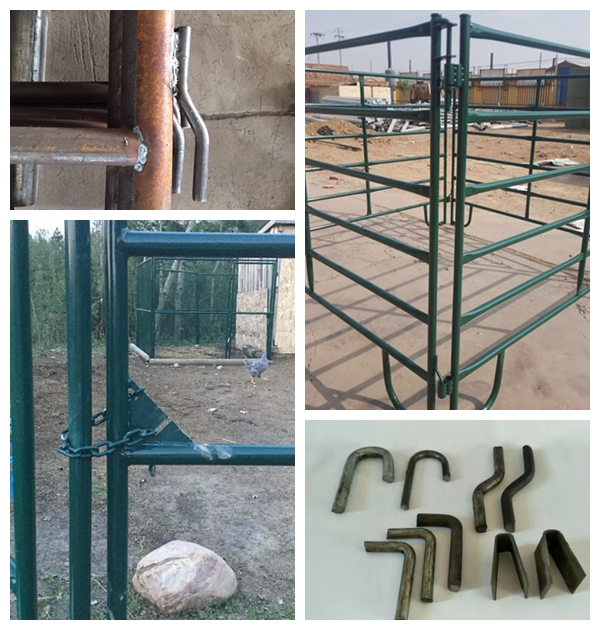

2. Corral Panel Accessories

The Corral Panel is specifically designed for portability. A quick-pin latch system allows this panel to assemble easily, while special J-shaped legs provide the freedom to move it around without getting stuck to the ground.

3. Corral Panels Qiality Testing

The Corral Panel has 1 3/4 inch or 2 inch in diameter tubing to provide ultimate strength and protection. With full welding and hot dipped galvanized finish, we can be sure that this panel will last for years.

Portable Security 6 Bar Corral Fence Panels Steel Livestock Fencing In Farm

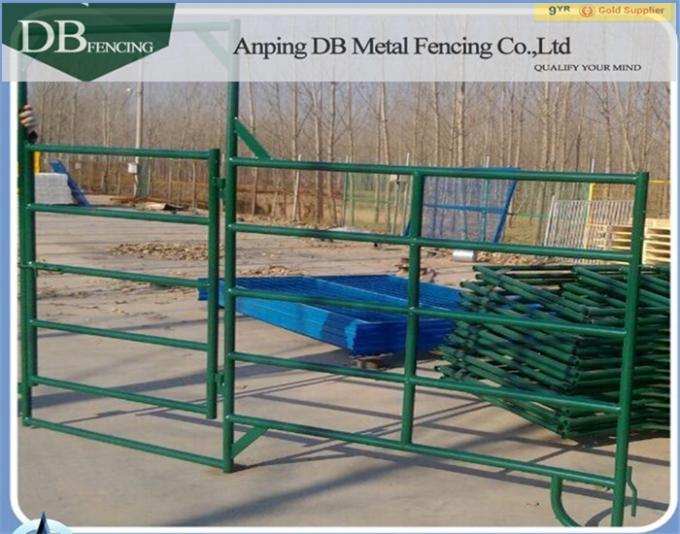

4. Corral Panels Gate

4 ft. (L) Economy Gate with 8 ft.(H) Frame
6 ft. (L) Utility Gate with 8 ft.(H) Frame. 8 ft (Arch), 6 ft (Wide Opening), 1 3/4 in (Tubing), 19 gauge
Panel Corral 10 Ft with Gate- 8' arch, 4' gate, 6' panel. 1 3/4" rounded tubing with full welded saddle joints
9′ arch with 6′ wide opening
Tarter 4' Walk Through Arch Gate- lengths with an 8' arch
