Detail Information
6' × 12' temporary chain link fence panel uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.
In addition, 6' × 12' temporary chain link fence panel with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.
1. 6ft x 12ft Temporary Chain Link Fence Panel |
||
|
Design |
North America,Australia & New Zealand |
|
|
Made |
China |
|
|
1) Panel Specification |
||
|
Panel Size |
Panel Height: 6ft(1800mm); Panel Length: 12ft(3600mm) |
|
|
Frame |
1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional. |
|
|
Chain Link Mesh Wire |
9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional |
|
|
Chain Link Mesh Size |
2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional. |
|
|
Brace |
Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D |
|
|
Treatment |
Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised |
|
|
Standard (Standard panels include barbed wire as extra security) |
AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding. |
|
2) Steel Feet Specification |
||
|
Size |
750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base |
|
|
Treatment |
Hot dipped Galvanised; |
|
3) Clamp Specification |
||
| Size | Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C); | |
| Treatment | Hot Dipped Galvanised; | |
| Weight | 0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut); | |
4) Packing |
In Bulk | |
|
A.Qty In 1x20’GP |
1020 set ( 1 panel+1 steel +1 clamp with bolt and nut); |
|
|
B.Qty In1x40’HC |
360 sets ( 1 panel +1 clamp with bolt and nut); |
|
5)Shipping Time |
15-20 days for 1x40’HC after receiving the deposit; |
|
6)Payment |
30% deposit by TT, and the balance paid at sight of BL copy; |
|
6' × 12' TEMPORARY CHAIN LINK FENCE PANELS

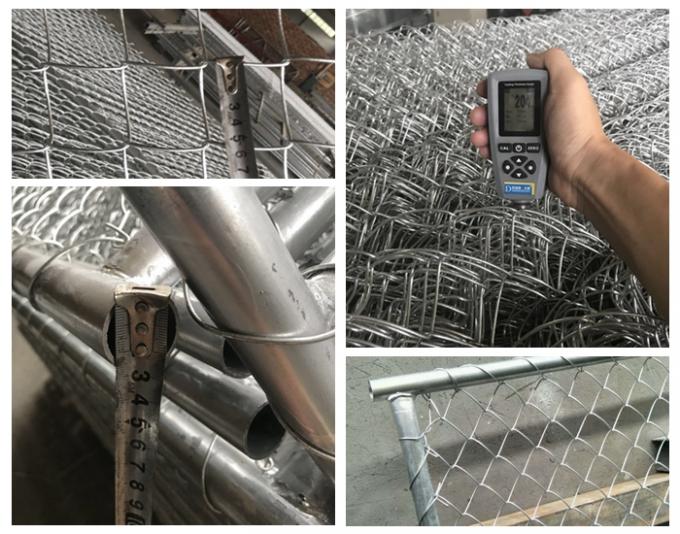

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

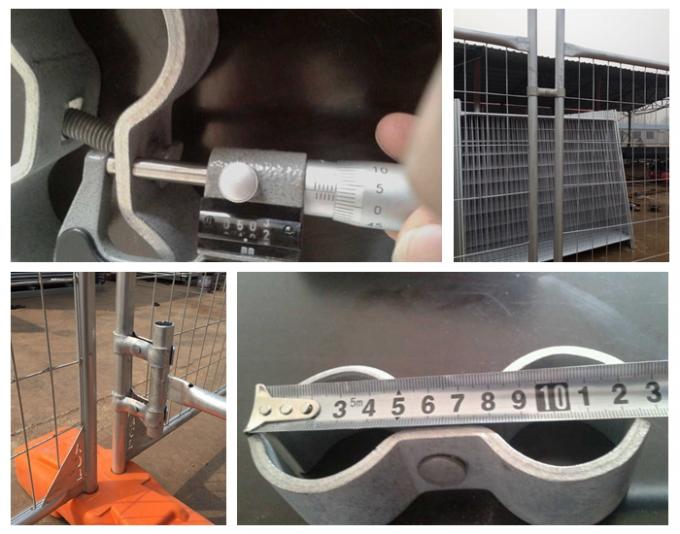

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.
Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.
Your High quality steel temporary chain link fence will look greater and be safer.
Get the Best Price for
MOQ： 50 panels
Price： USD 25-30/Panel
