Detail Information
FRP Grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal,
and througly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure
the FRP Grating panel. After curing, the panel is ejected from the mould. The standard frp mesh panel would have
meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as
bi-directional strength.

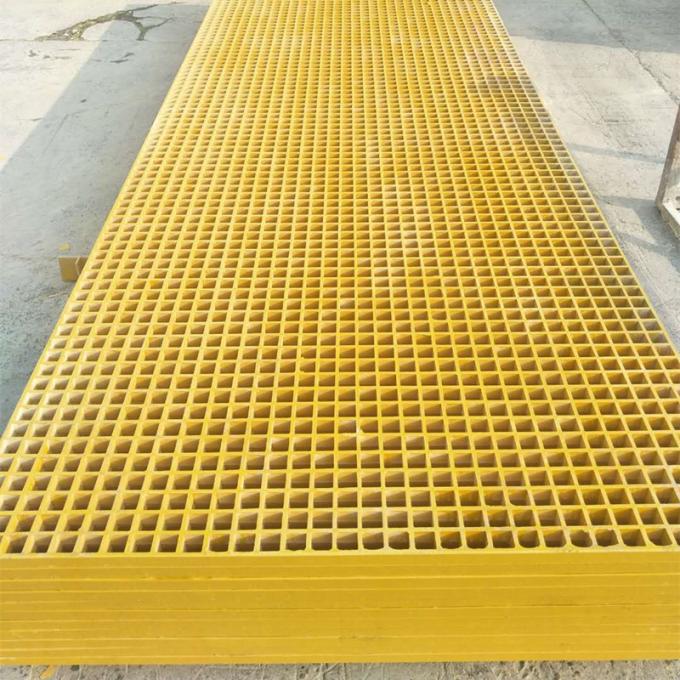

FRP Grating is a moulded ,one-piece fiberglass reinforced plastic grating ,available in standard panels or custom panels
made to order from drawings supplied. It is principally used for floors, platforms, stair tread, catwalks and trench covers.
1) There are so many resin for your choices before order FRP Grating
| Resin Type | Resin Base | Description | Corrosion Resistance | Application |
| OCR | Ortho | Moderate Corrosion Resistance | Moderate | No fire resistant requirement |
| OFR-25 | Ortho | Moderate correction resistance and Fire retardant | Moderate | general performance in Acid ,Alkali resistant environment |
| IFR-25 | ISO | Industrial Grade Corrosion Resistance and Fire Retardant | very good | good performance in Acid, Alkali resistant environment |
| IFGR30 | ISO | Food grade corrosion resistance and fire retardant | very good | Meat product plant and food processing factory |
| VEFR-10 | VINYL Ester | Industrial Grade Corrosion Resistance and Extra Fire Retardant | very good | High above normal performance in Acid ,Alkali resistant environment |
| VEFR-25 | VINYL Ester | Superior Corrosion Resistance and Fire Retardant | excellent | superior performance in Acid ,Alkali resistant environment |
| MP-5 | Phenolic Resin | Low smoke and superior fire resistance | excellent | highest requirement in cid ,Alkali resistant environment |

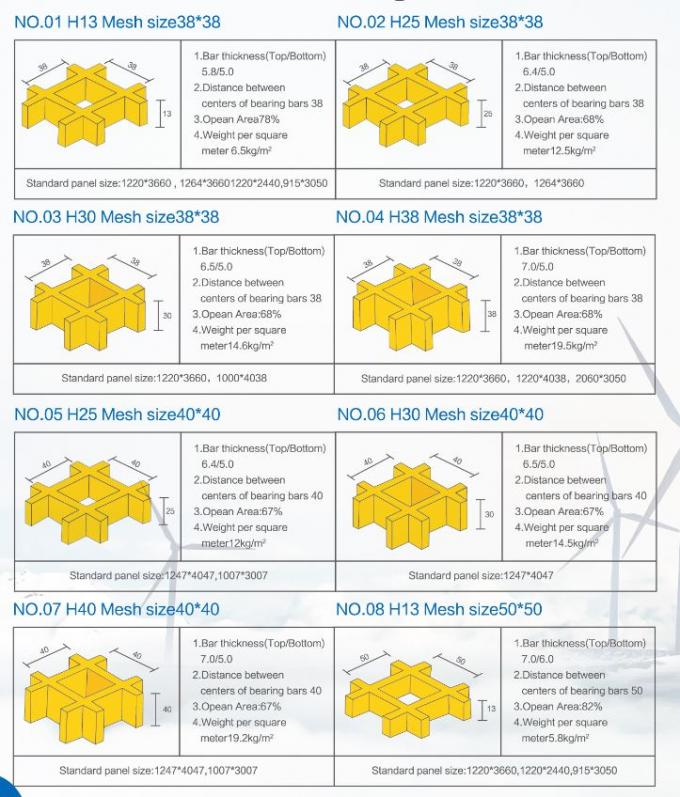

2) Specification of FRP Molded Grating
| NO | MESH SIZE(mm) | THICKNESS(mm) | NUT WEIGHT(KG) | PANEL SIZE (mm) |
| 1 | 38*38 | 25 | 12.5 | 1220*3660 |
| 2 | 38*38 | 25 | 12.5 | 1264*3660 |
| 3 | 38*38 | 30 | 14.6 | 1220*3660 |
| 4 | 38*38 | 30 | 14.6 | 1000*4038 |
| 5 | 38*38 | 38 | 19.5 | 1220*3660 |
| 6 | 38*38 | 38 | 19.5 | 1220*4038 |
| 7 | 38*38 | 38 | 19.5 | 2060*3050 |
| 8 | 40*40 | 40 | 20.5 | 1007*4047 |
| 9 | 19*19/38*38 | 25 | 16.8 | 1220*3660 |
| 10 | 19*19/38*38 | 30 | 20 | 1220*3660 |
| 11 | 19*19/38*38 | 38 | 24 | 1220*3660 |
| 12 | 50*50 | 50 | 21.5 | 1220*3660 |
| 13 | 25*100 | 25 | 13.5 | 1307*3007 |

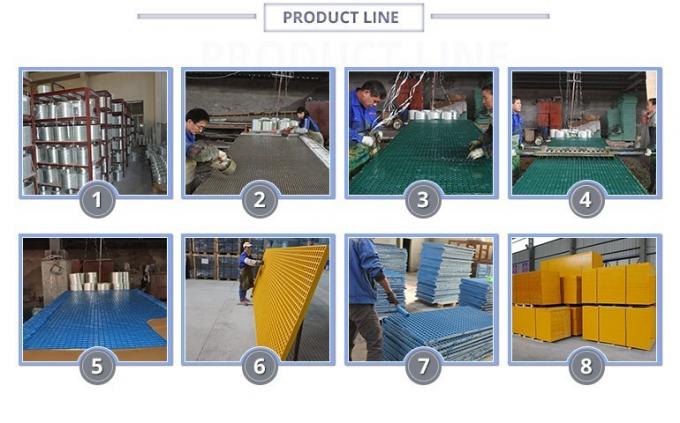

3. FRP Grating Processing

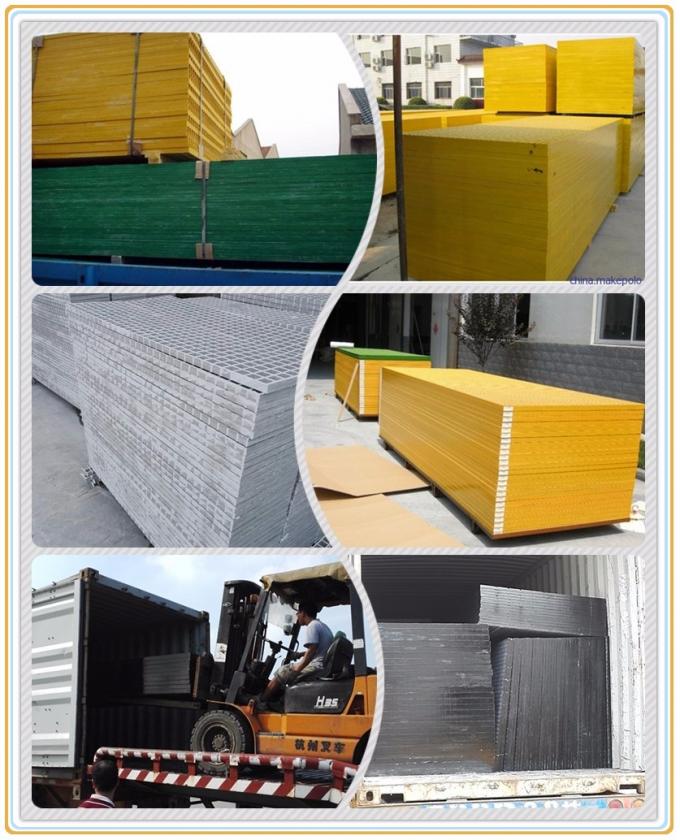

4. FRP Grating Packing & Loading
|
Package |
1. Wooden-frame |
| 2. Wooden pallet with protection film | |
| 3.Wooden case | |
| 4. According to customer requirements. | |
|
Lead Time |
1. Stock size 7-10working days. |
| 2. Custom size 15-20 working days. | |
| Tree Fiberglass Reinforced Plastic FRP Grating For Drain Cover, GRP Swimming Pool & Deck Overflow Floor | |

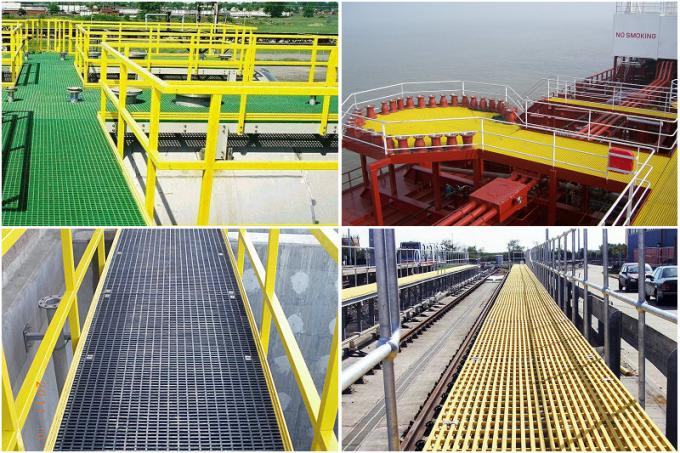

FRP grating is widely used in the fields of petrochemical industry,textile printing and dyeing,food processing, electronics
industry,pharmaceutical manufacturing, metal smelting,sewage treatment,transportation,water plant breeding,pulp and
paper,shipbuilding,civil architecture etc. The concrete uses include operating platform,overhauling walkways, driling
platform,terrace,stair steps,equipment aisle,trench over,boat deck,fence etc.
Get the Best Price for
MOQ： 50 Panels
Price： FOBtianjin USD5-20/pc
