Detail Information

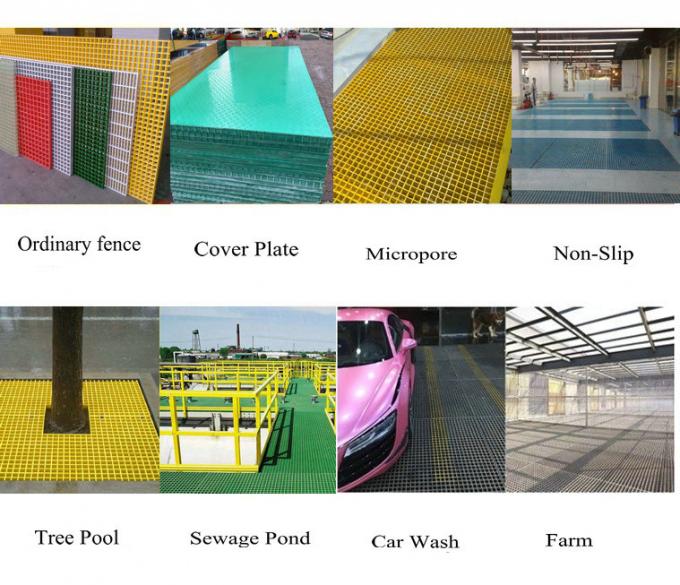

The fiberglass stair treadsare made by interlacing glass fiber and molded by resin casting. Theglass fiber reinforced plastic grating with many regular rectangular and square spaces has two-dimensional homogenous mechanical characteristics. Can be widely used in petroleum, chemical electronics, power, paper, printing and dyeing, electroplating, marine exploration, sewage treatment and other industries, such as work platforms, equipment platforms, drilling platforms, walkways, etc., is an ideal product in a corrosive environment, but also suitable for Civil building facilities.
|
Type |
Molded Fiber Glass Reinforced Plastic Grating Sheet Made in China |
|
Material |
ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH) |
|
Mesh Size |
38*38*38mm,can be customized |
|
Color |
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized |
|
Surface |

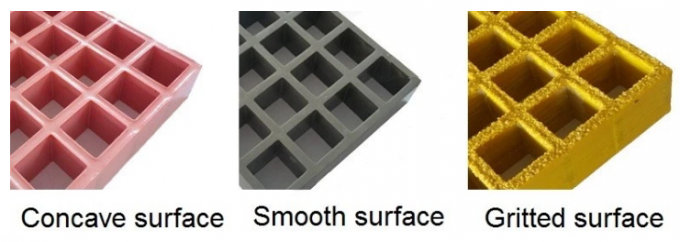

Gritted, Smooth, Concave, Solid Top Covered |
|
NO |
MESH SIZE(mm) |
THICKNESS(mm) |
NUT WEIGHT(KG) |
PANEL SIZE (mm) |
|
1 |
38*38 |
25 |
12.5 |
1220*3660 |
|
2 |
38*38 |
25 |
12.5 |
1264*3660 |
|
3 |
38*38 |
30 |
14.6 |
1220*3660 |
|
4 |
38*38 |
30 |
14.6 |
1000*4038 |
|
5 |
38*38 |
38 |
19.5 |
1220*3660 |
|
6 |
38*38 |
38 |
19.5 |
1220*4038 |
|
7 |
38*38 |
38 |
19.5 |
2060*3050 |
|
8 |
40*40 |
40 |
20.5 |
1007*4047 |
|
9 |
19*19/38*38 |
25 |
16.8 |
1220*3660 |
|
10 |
19*19/38*38 |
30 |
20 |
1220*3660 |
|
11 |
19*19/38*38 |
38 |
24 |
1220*3660 |
|
12 |
50*50 |
50 |
21.5 |
1220*3660 |
|
13 |
25*100 |
25 |
13.5 |
1307*3007 |
2. Features of Fiberglass Stair Treads
1. Light weight: Its weight is one quarter of steel gratings; easy for carrying, which reduce the carrying cost.
2. Good mechanical property: Resin content is 35%; fiberglass content is 65%, which increase the rate between strength and weight.
3. Aging resistance: UV absorption agent and polyester surface veil mat are added in the formula, which can protect from ultraviolet rays.
4. Effective: The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach above 26. (per the requirement of project)
5. Others: Impact resistance, free from maintenance, easy for processing, slide resistance, electric andthermal insulation.
Get the Best Price for
MOQ： 50 Panels
Price： FOBtianjin USD5-20/pc
