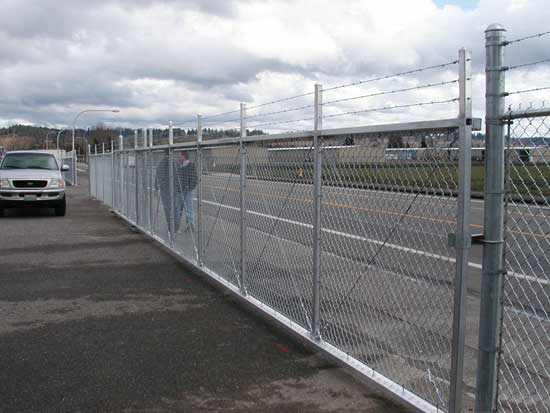

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

Chain Link Fence

Chain link fencing, also known by some as cyclone fence, is one of the most popular choices of fence for both light residential to heavy commercial fence applications. Chain link fence is one of the most practical styles of fence, relatively easy to install, and very cost effective.

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

1. Material: High quality mild steel wire, stainless steel wire, aluminum alloy wire, PVC wires, galvanized wire.

2. Chain Link Fence Manufacture

  • With a commitment to continuous improvement in our safety and quality standards.
  • With 5 Auto- Welding Lines and 8 Auto - Cutting Machine ,Daily Output1000m
  • Paramount to all of our product designs is safety
  • We are ISO 9001:2008 certified

3. Chain Link Fence Finish

Hot Dipped Galvanized : popular in backyards and athletic application for its smooth finishVinyl Coated : This provides protection from corrosion and also offers a choice of colors

Surface treatment Min Max
Electro Galvanized 15g/m2 25g/ m2
Hot dip galvanized 30/ m2 366g/m2
PVC/PE Coated 400microns 1000microns

4. Chain Link Fence Fabric

Our mesh is made only with top quality and is woven with intricate detail

Material Galvanized Wire, PVC coated wire, Black wire, Stainless Stee Wire
Opening 1'' 1.5'' 2'' 2.25'' 2.4'' 2.5'' 3'' 4''
25mm 40mm 50mm 55mm 60mm 65mm 76mm 100''
Wire Diameter 18#-7#
1.0mm-5.0mm
Height of the Roll 1m-5m
Length of the Roll

10m-50m

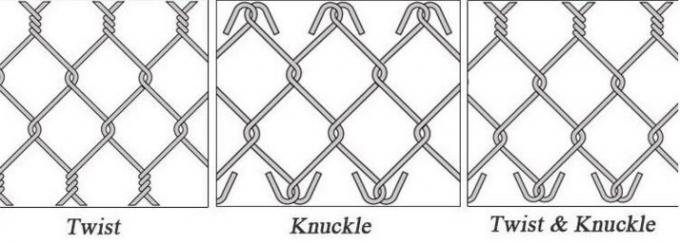

Weaving of Chain Link Fence:

(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)


(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)


(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

5. Chain Link Fence Framework

Application Light Duty Medium Duty Heavy Duty
3’-4’ high Top Rail 1-3/8” 17 ga. 1-3/8” 16 ga. 1-3/8” 15 ga.
Line Posts 1-5/8” 17 ga. 1-5/8” 16 ga. 1-5/8” 15 ga.
Terminal Posts 1-7/8” 17 ga. 1-7/8” 16 ga. 1-7/8” 15 ga.
5’-6’ high Top Rail 1-3/8” 17 ga. 1-3/8” 16 ga. 1-5/8” 15 ga.
Line Posts 1-7/8” 17 ga. 1-7/8” 16 ga. 1-7/8” 15 ga.
Terminal Posts 2-3/8” 17 ga 2-3/8” 16 ga. 2-3/8” 15 ga.

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

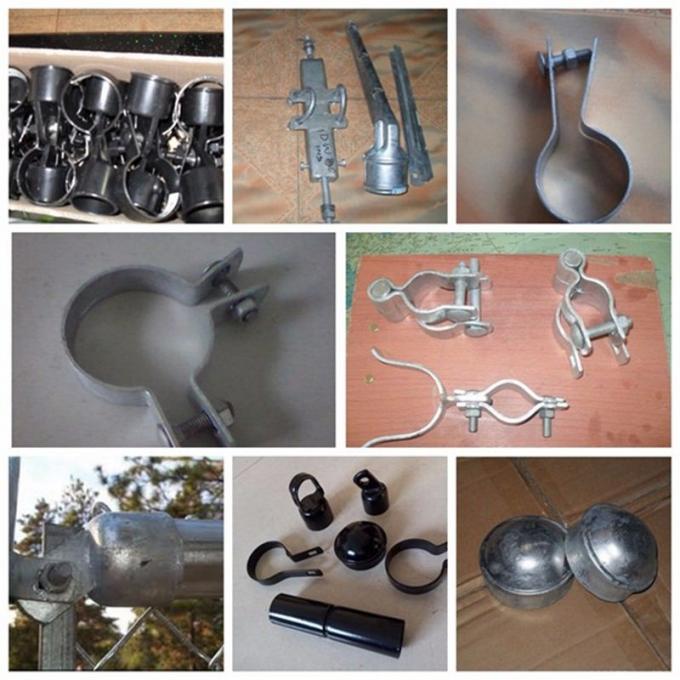

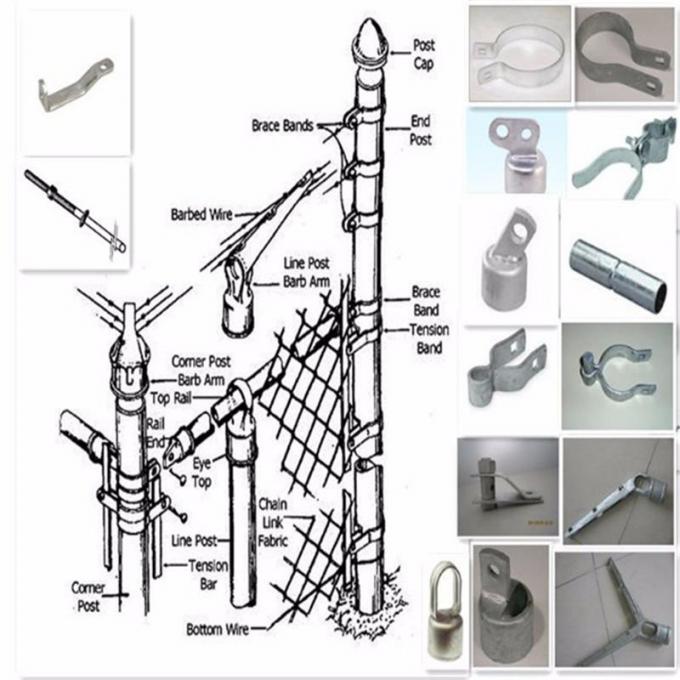

6. Chain Link Fence Fittings

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial AreaChain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

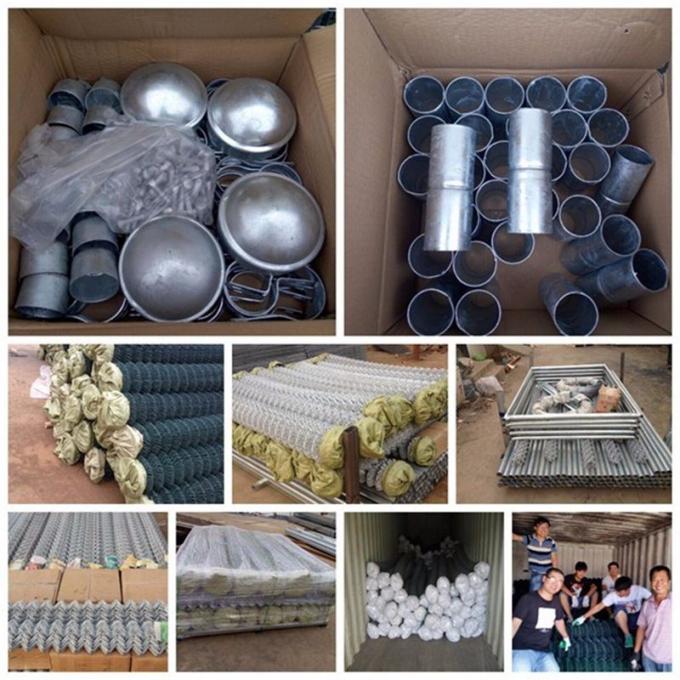

7. Chain Link Fence Packing And Loading

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

Get the Best Price for

Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area
Chain Link Temporary Fence Barriers For Light Residential / Heavy Commercial Area

MOQ： 50PCS

Price： Negotiable
