Detail Information
Crowd Control Barrier
Product Abstract:
1) Place of Origin:Hebei, China (Mainland);
2) Brand Name:DB FENCE;
3) Panel Size:2.1x1.1m,2.5x1.1m;
4) Out frame pipe:20mm, 25mm, 32mm, 40mm, 42mm & 48mm O.D;
5) Infill picket:14mm, 16mm, 20mm & 25mm O.D;
6) Spacing:60mm, 100mm, 190mm & 200mm;
7) Finish:Hot-dipped Galvanized;
8) Feet:Detached(Flat, Bridge & Corss feet);
9) Features:Easy to handle and remove;
10) Application:safety construction, queue barrier, temporary barrier;
11) Main market:Australia, New Zealand, European and Asian countries
Product Description
Products Description of crowd control barrier
Crowd Control Barriers have been designed for use at events that need to accommodate for a larger crowd.
1. Crowd Control Barrier, when linked together, act as both a physical and psychological restraint, creating the sense of a dividing "solid wall." They are designed to physically discourage transgression and encourage directional order and crowd control. Our steel barricades are available in three lengths with the following overall dimensions:
|
Item |
1-Meter |
2-Meter |
2.5-Meter |
|
Length |
39" (3.25 Ft.) |
79" (6.5 Ft.) |
98" (8 Ft.) |
|
Height |
43" (3.6 Ft.) |
43" (3.6 Ft.) |
43" (3.6 Ft.) |
|
Weight |
29 lb. (with Bridge Base) |
44 lb. (with Bridge Base) |
54 lb. (with Bridge Base) |
|
Number of Uprights |
6 |
14 |
18 |
|
Spacing Between Uprights |
4 3/8" |
4 3/8" |
4 3/8" |
|
Frame Thickness |
16 gauge |
16 gauge |
16 gauge |
|
Frame Diameter |
1.5" |
1.5" |
1.5" |
|
Upright Diameter |
.625" |
.625" |
.625" |

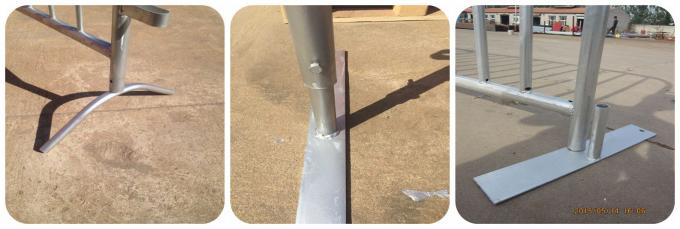

2. Bases of crowd control barrier
Traditional bridge bases are designed so that each pedestrian barriers has one large base and one small base, located at the extreme ends of the frame. This allows for four points of the base to remain in constant contact with the ground, as well as accommodating placement of steel barriers in both a straight line at various angles.<
There are four types of bases:
· Bridge Base
· "U" Base
· Flat Base
· Fixed Leg
Their flat feet feature (to prevent trip hazard) provides a quick and efficient solution in any situation where you need to divert patrons and the general public away from a designated area.
They are fully Hot Dipped Galvanized after welding. Each barrier is completely dipped in a Gal bath after manufacture. This is the best galvanizing process available. Not Electro Gal, Not In-Line Gal, Not Pre Gal, Not Gal Paint, Not DuraGal, but genuine Hot Dipped Galvanizing after welding. This means they will be far more weather resistent and durable, and will last much longer than other Crowd Barriers on the market.
3. Hooks of crowd control barrier
Crowd Control Barriers are designed to be linked together via male hooks. A 30 degree bend in the male hook creates a positive interlock which prevents it from becoming disengaged. Each male hook is a 5/8" steel rod, welded to the frame on both ends. Each female receptor is a 3/16" by 1.5" steel plate welded to the frame.
Three-Way Interlocking Barriers
The style and location of the hooks and receptors is designed to accommodate a three-way interlock set-up, in which three steel barriers are connected at one point (one at a right angle, while the other two are side-by-side in a straight line. )This counter-bases the continuous line, and enables the creation of a reinforced double line (running parallel to the original line, supported by counter braces).
4. Crowd Control Barriers Processing:
5. Crowd Control Barriers Quality Control:
6. Loading And Packing:

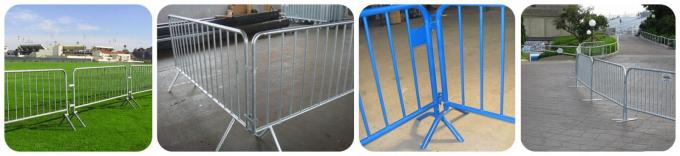

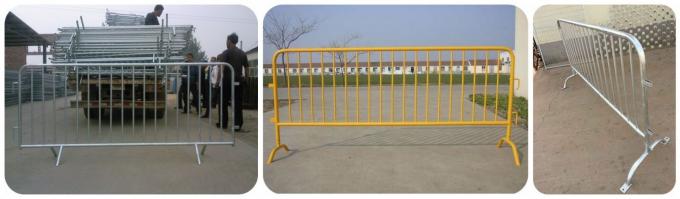

7. Gallery of Crowd Control Barriers Application:
