Detail Information

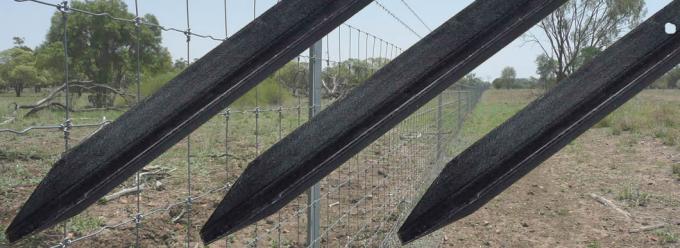

steel post / Y post / star picket
Advantage of steel Y fence post
A. This kind of fence post enjoys an improved rate of 30% in its mechanical property and physical propery compared with common steel posts with same section size;
B. Have nice appearance. Easily used, with a low cost;
C. Long service life.
Y posts also named as Star Picket, Star Post, Metal Picket, Steel Post, Steel Picket, Fence Post, etc are
widely used in installing Field fence and other fence such as cattle fence,sheep netting fence and game fence.
In cross-section they form a three-pointed star, about 10 cm in diameter. One end is pointed so the steel post
can be more easily hammered into the ground, and the other end is flat to suit the hammer. Holes are pre-drilled
along the length of the post to allow wires to be attached to the picket for fixing to Temporary Fence, Barrier Mesh etc.
1. Material of star picket: Low carbon steel Q235
2. Unit weight:1.58kg/m, 1.86kg/m, 1.9kg/m, 2.04kg/m.
3. Length: 0.45-3.0m.
4. Surface treatment:
Black star pickets: Black (Tar) Bitumen Coated.
Galvanised star pickets: Hot Dipped Galvanized.
5. Packing:10 pcs/Bundle, 400pcs/pallet.
| Y Post / Star Picket / Star Post | |||||||||
| Measurement | 0.45M | 0.60M | 0.90M | 1.35M | 1.50M | 1.65M | 1.80M | 2.10M | 2.40M |
| SPEC | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt |
| 1.58kg/m | 1406 | 1054 | 703 | 468 | 421 | 386 | 351 | 301 | 263 |
| 1.86kg/m | 1195 | 896 | 597 | 398 | 358 | 326 | 299 | 256 | 224 |
| 1.90kg/m | 1170 | 877 | 585 | 390 | 351 | 319 | 292 | 251 | 219 |
| 2.04kg/m | 1089 | 817 | 545 | 363 | 326 | 297 | 272 | 233 | 204 |
| Hole Quantity for Australia and New Zealand | |||||||||||||||
| Length | 0.45M | 0.60M | 0.90M | 1.35M | 1.50M | 1.65M | 1.80M | 2.10M | 2.40M | ||||||
| Size | (20-22MM) × (20-22MM) × (30-32MM) | ||||||||||||||
| Thickness | 2.5MM-3.2MM | ||||||||||||||
| Holes ( Australia) | 3 | 3 | 5 | 11 | 14 | 14 | 14 | 7 | 7 | ||||||
| Holes (New Zealand) | 7 | 7 | 7 | 8 | |||||||||||
Application of steel Y fence post
For protective wire mesh fencing of express highway and express railway;
For security fencing of beach farming, fish farming and salt farm;
For security of forestry and forestry source protection;
For isolation and protecting husbandry and water sources;
Fencing posts for gardens, road and houses.
