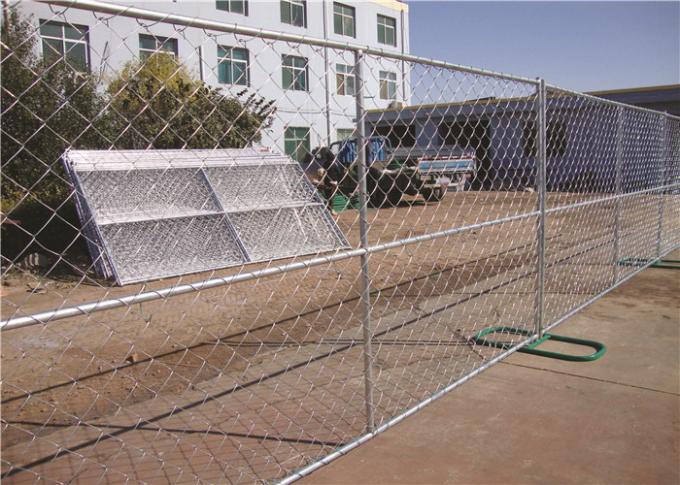

Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence

6' x 12' Chain Link Temporary Fence Panel


Temporary chain link fence is also called mobile fence mesh, temporary police. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition, Temporary Chain Link Fence with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence

1. 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
Design North America,Australia & New Zealand
Made China
1) Panel Specification
Panel Size 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft
Frame 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)

AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,

Aquatic and General Use.

AS 54687-2007 – Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size 750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment Hot dipped Galvanised;
3) Clamp Specification
Size Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment Hot Dipped Galvanised;
Weight 0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);
4) Packing In Bulk
A.Qty In 1x20’GP / set ( 1 panel+1 steel +1 clamp with bolt and nut);
B.Qty In1x40’HC / sets ( 1 panel +1 clamp with bolt and nut);
5)Shipping Time 15-20 days for 1x40’HC after receiving the deposit;
6)Payment 30% deposit by TT, and the balance paid at sight of BL copy;

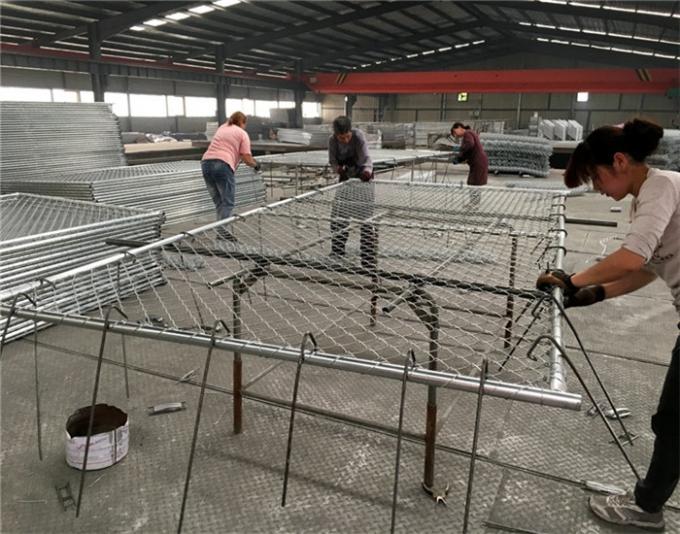

1. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Quality Testing

TEMPORARY CHAIN LINK FENCE PANELS

Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence

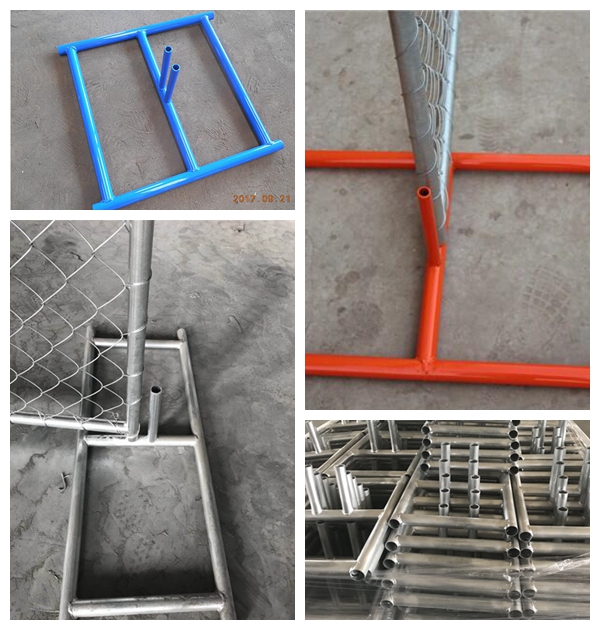

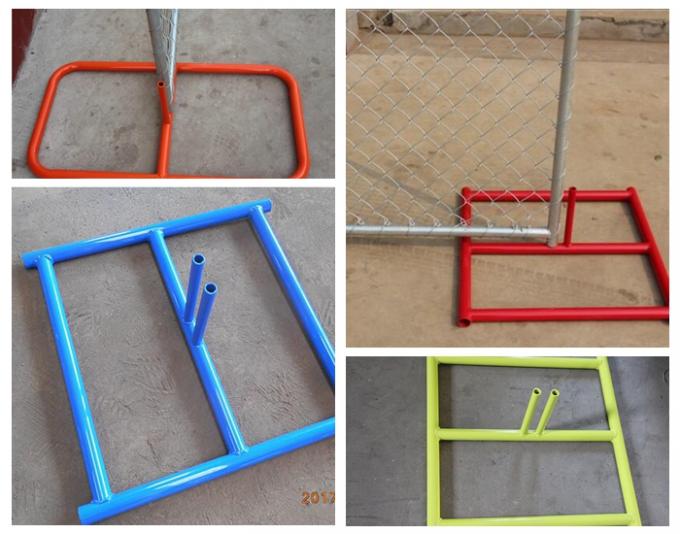

2. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Base Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.

Your High quality steel temporary chain link fence will look greater and be safer.

Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence

3. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Steel Clamp


Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence

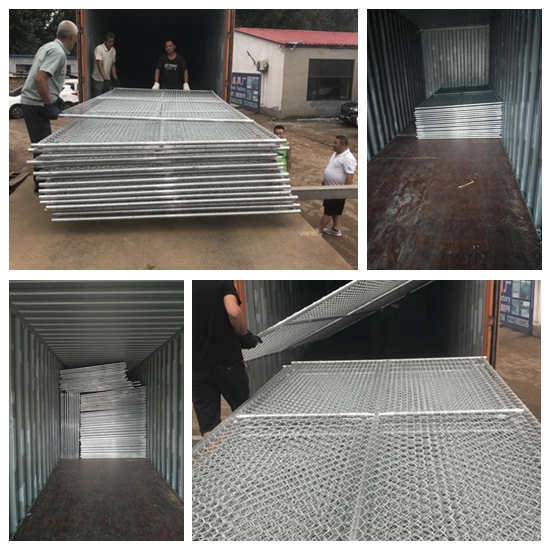

4. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Loading


Freestanding 6ft Chain Link Fence Panels , Mobile Portable Chain Link Fence
