Detail Information

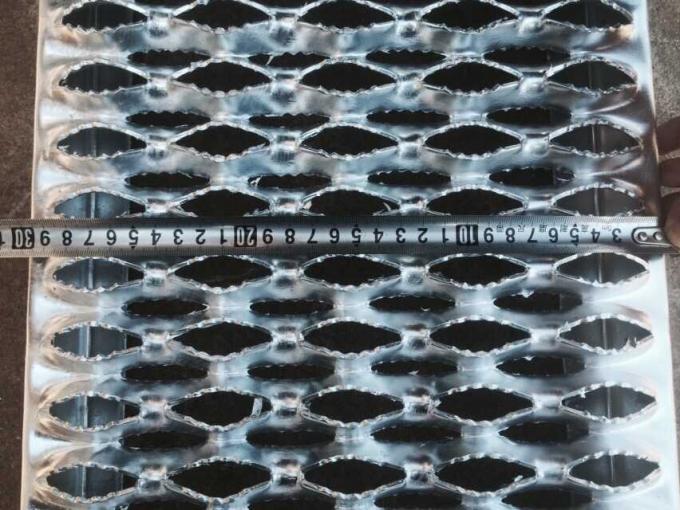

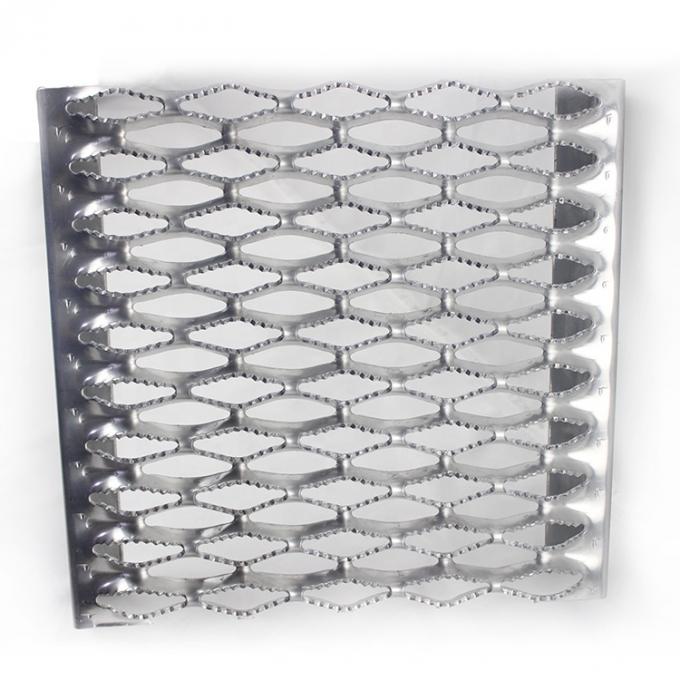

Grip Strut Plank Gratingis manufactured as one-piece constructed channels with walking
surfaces consisting of serrated edges on top of diamondshaped openings. The serrated surface
of grip strut plank grating is designed in an open diamond pattern. This allows drainage of fluids,
mud, chips and other accident-causing debris.
Grip strut plank grating can be cut or bending to any size and are ideal for wet or dry conditions
where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
Material of Grip StrutPlank Grating: galvanized steel, aluminum alloy and stainless steel.
Width of Grip Strut Plank Grating: 4-3/4", 7", 9-1/2", 11-3/4", 18-3/4" and 24".
Channel height of Grip Strut Plank Grating: 1-1/2", 2", 2-1/2" and 3".
Plank thickness of Grip Strut Plank Grating: 14G, 12G and 10G. Other thickness can be customized.
Clear span of Grip Strut Plank Grating: 2', 2'6", 3', 3'6", 4', 4'6", 5', 5'6", 6', 6'6", and 7'.
|
2 Diamond / 9-1/4" WidthGrip Strut Plank Grating |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
2 Diamonds |
9-1/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
9-1/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
9-1/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
9-1/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
3 Diamond / 13-3/4" WidthGrip Strut Plank Grating |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
3 diamonds |
13-3/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
13-3/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
13-3/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
13-3/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
5 Diamond / 23-1/4" WidthGrip Strut Plank Grating |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
5 diamonds |
23-1/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
23-1/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
23-1/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
23-1/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
6 Diamond / 27-3/4" WidthGrip Strut Plank Grating |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
6 diamonds |
27-3/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
27-3/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
27-3/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
27-3/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
8 Diamond / 36" WidthGrip Strut Plank Grating |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
8 diamonds |
36 |
1-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
36 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
36 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
36 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
2. Advantages of Grip Strut Plank Grating
· Serrated regular grip strut plank grating
· Light, easy-to-handle planks make installation simpler and quicker
· Grip Strut Plank Gratingcan be handled by one man
· Ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous
walking conditions
· Offers excellent slip resistance wherever maximum safety underfoot is essential
3. Deliverying of Grip Strut Plank Grating
For the standard ones it will take about 5-7 working days and for other special customized sizes
which would depend on customers' sizes and quantity

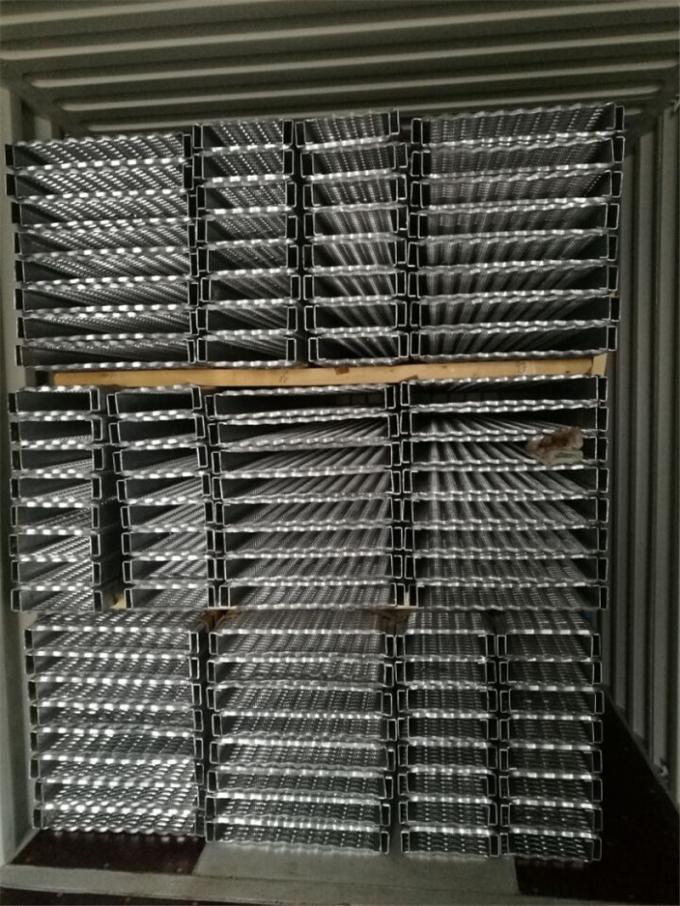

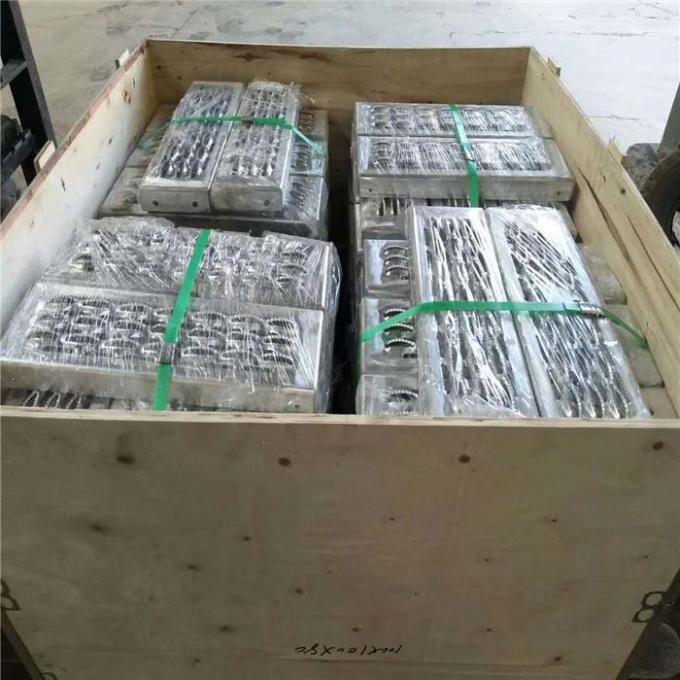

4. Packing & Loading of Grip Strut Plank Grating
Grip Strut Plank Grating is usually packed by wooden or steel pallet then fixed by steel belt
Get the Best Price for
MOQ： 10 pcs
Price： FOBtianjin USD10-25/PC
