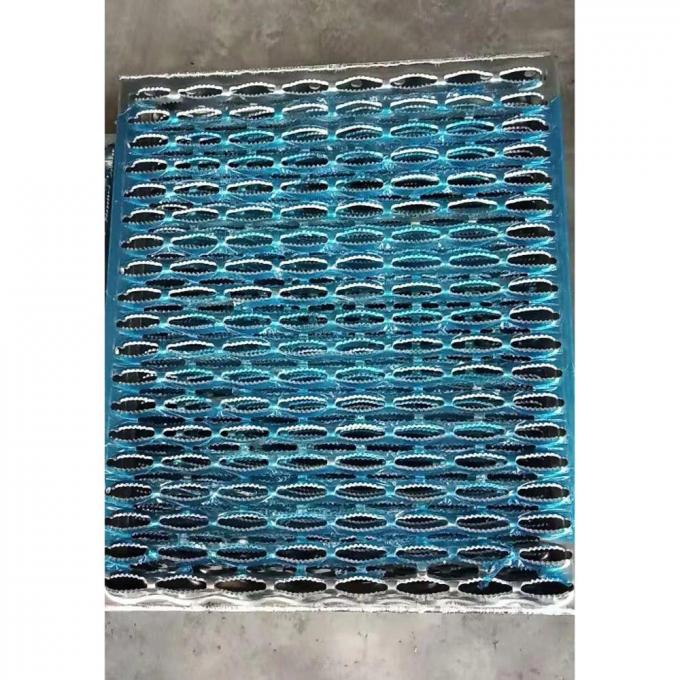

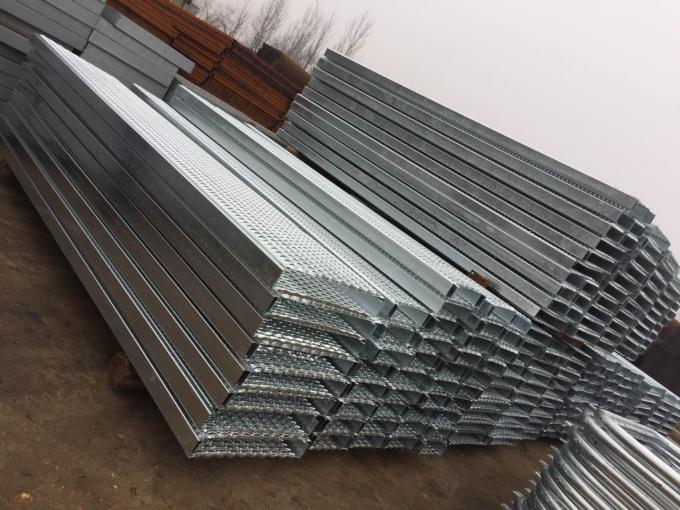

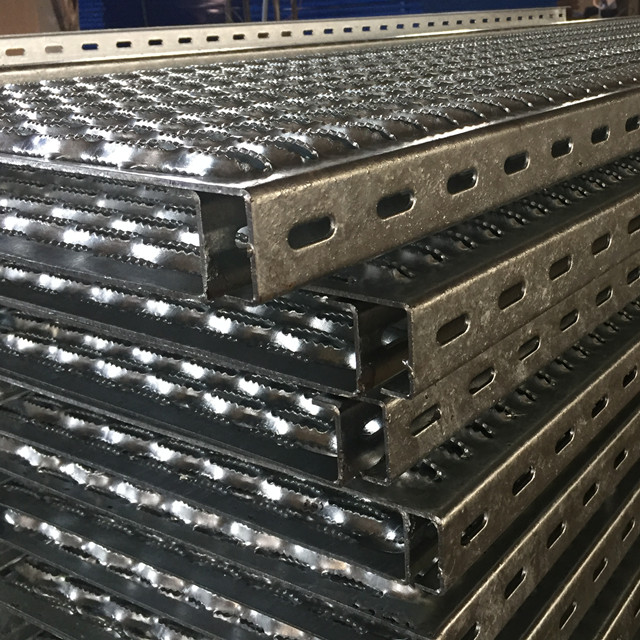

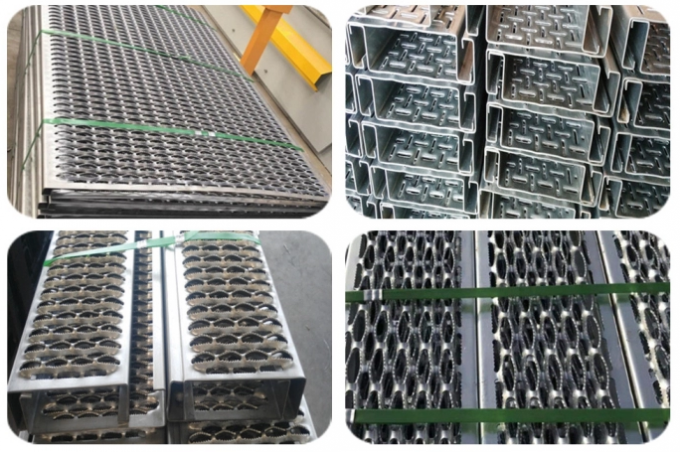

Detail Information
Grip Strut Walkway Material: Pre-galvanized steel, HRPO steel, 5052-H32 mill finish aluminum,
304 or 316 stainless steel.
Grip Strut WalkwayFinish: electric galvanized or hot-dipped galvanized.
Grip Strut WalkwayThickness: 11G to 16G for stainless steel.
Grip Strut WalkwayRound Plate Width: 5", 7", 10", 12", 18", 24", 30".
Grip Strut WalkwayDiamond plate width: 4-3/4" (2 diamond), 7" (3 diamond), 8-1/8" (3 diamond
with abrasive nosing), 9-1/2" (4 diamond), 10-1/2" (4 diamond with abrasive nosing) and 11-3/4"
(5 diamond), 18-3/4" (8 diamond), 24" (10 diamond).
Channel Depth: 1-1/2", 2",2-1/2”, 3", 4".
|
2 Diamond / 9-1/4" Width |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
2 Diamonds |
9-1/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
9-1/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
9-1/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
9-1/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
3 Diamond / 13-3/4" Width |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
3 diamonds |
13-3/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
13-3/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
13-3/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
13-3/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
5 Diamond / 23-1/4" Width |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
5 diamonds |
23-1/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
23-1/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
23-1/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
23-1/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
6 Diamond / 27-3/4" Width |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
6 diamonds |
27-3/4 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
27-3/4 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
27-3/4 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
27-3/4 |
4 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
8 Diamond / 36" Width |
||||
|
Diamond Pattern |
Width |
Channel Depth |
galvanized |
Aluminum |
|
8 diamonds |
36 |
1-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
36 |
2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
36 |
2-1/2 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|
|
36 |
3 |
11 Ga., 10 Ga., 9Ga. |
12 Ga. (.080), 10 Ga. (.100) |
|

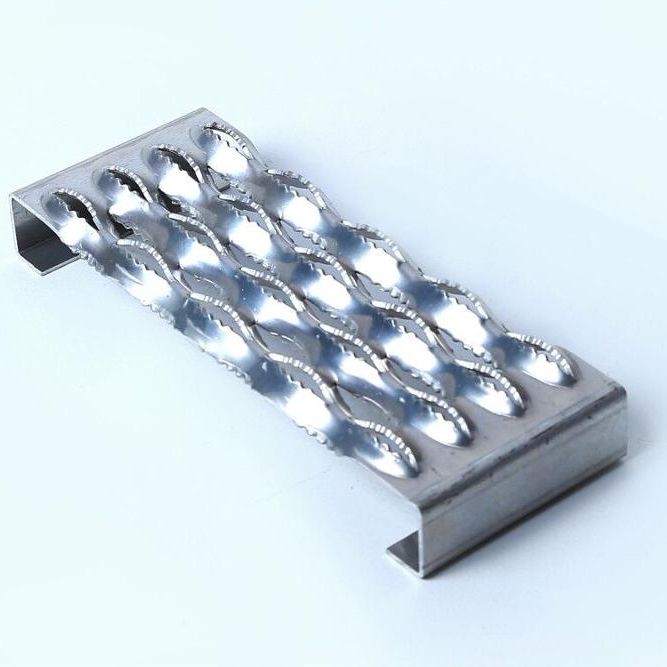

Grip Strut Walkwayis produced with welded end carrier plates, it uses the same materials with plank.
The pattern can be 2, 3, 4, 5 diamonds. The stair treads are divided into standard stair treads and stair
treads with nosing. The standard stair treads can be used life, traffic, etc. The stair treads with nosing
are more high slip resistance, it has a special usages for industry.
