Detail Information

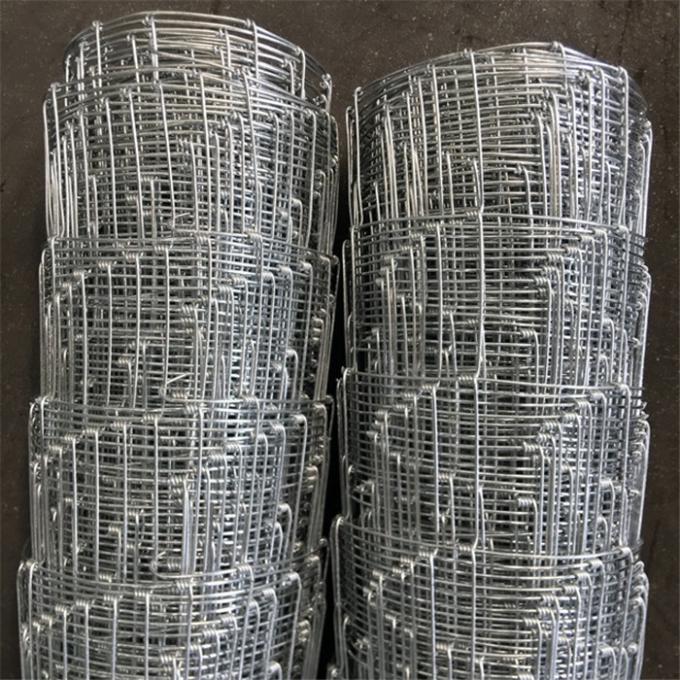

Farming Hinge Joint Field Fence Cow Fence 7/90/30x200m Roll is manufactured in a wide selection of heights
and styles featuring a graduated spacing that starts with small openings at the bottom which helps prevent entry from
small animals. The hinge-lock knot allows the fencing to give under pressure and spring back into shape.
Farming Hinge Joint Field Fence Cow Fence 7/90/30x200m Roll offers high strength against the violent clashing of
horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
Good flexibility; good pressure resistance, weather resistance properties, long service time. Even the cut pieces will
not deform under pressure.
Specification
7/90/30 – 200m rolls – 2.5mm wire Galvinised
– Roll height 0.9m H
– Roll length 200m L
– 7 Horizontal Line Wires
– 30cm vertical Spacing
– All wires 2.5mm thickness
– Material: Hot dip galvanised steel wire
The specification of other Hinge Joint Field Fence:
|
No |
Specifications and Hole Sizes |
Gross Weight kg |
Top and Bottom Wire Dia.mm |
Inner Wire Dia. mm |
Material |
|
|
Type |
Specifications(the incremental vertical hole sizes) |
|||||
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
19.3 |
2.5 |
2.0 |
Hot dip galvanzied wire,Zinc Coating of 40-50g/m², Zinc coating more than 200g/m² |
|
2 |
8/150/813/50 |
89(75)+89+102+114+127+140+152 |
20.8 |
2.5 |
2.0 |
|
|
3 |
8/150/902/50 |
89+102+114+127+140+152+178 |
21.6 |
2.5 |
2.0 |
|
|
4 |
8/150/1016/50 |
102+114+127+140+152+178+203 |
22.6 |
2.5 |
2.0 |
|
|
5 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
23.6 |
2.5 |
2.0 |
|
|
6 |
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
23.9 |
2.5 |
2.0 |
|
|
7 |
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
26.0 |
2.5 |
2.0 |
|
|
8 |
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203 |
27.3 |
2.5 |
2.0 |
|
|
9 |
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
28.4 |
2.5 |
2.0 |
|
|
10 |
11/150/1422/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
30.8 |
2.5 |
2.0 |
|
