Detail Information
1.5*50m Agricultural Field Farm Hinge Joint Wire Fence Roll is formed by horizontal and
vertical galvanized wire, joined by hinge joint knots forming rectangles, whose graduation goes
from low to high from the bottom up.

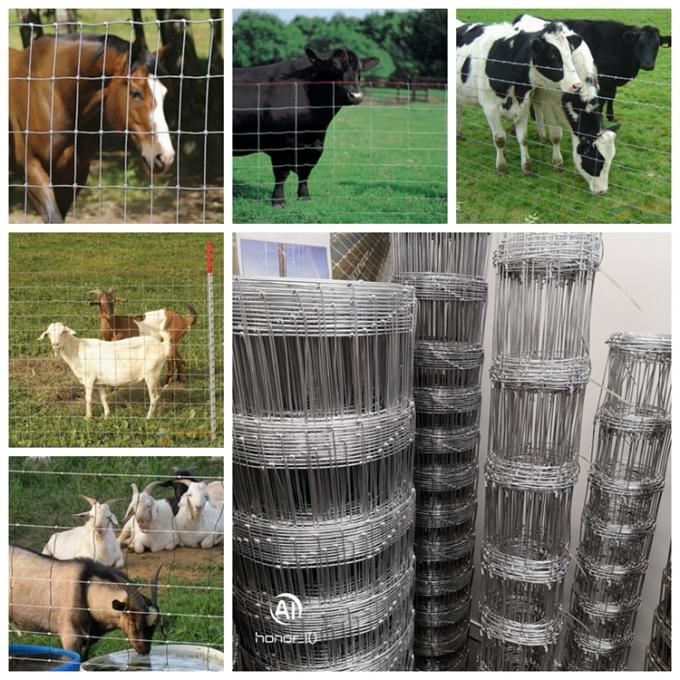

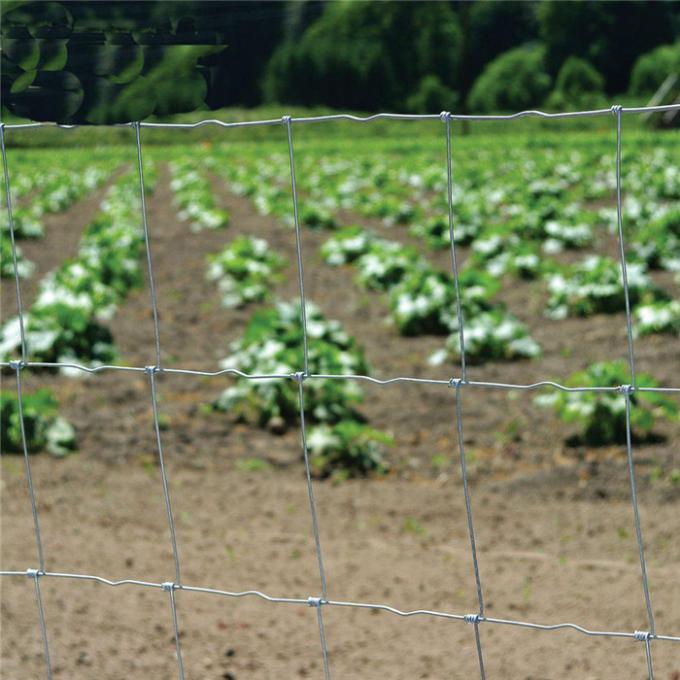

Field fences are an economical way to build sturdy and long-lasting fences for your livestock.
Wire fences come in different heights and gauges so you can get the type of livestock fences you need.
Material: Hot-dipped galvanized wire, which is made of Q235 iron rod(most hard low carbon steel)
Surface treatment: Hot dip galvanized(high zinc coating: 200g/m2; common zinc coating: 50-60g/m2
Quality galvanized galvanized cattle fencing, kraal, grassland netting fence, prairie fence wire mesh
widely used for cattle, sheep and other animals.
*Diameter of all wires used: Top / BOTTOM wire dia: 2.5MM-3.6mm
*Line /stay wire dia area: 1.7MM-2.5mm
* Top and Bottom wire diameter:2.0-3.2mm
*Hardness Mpa of all wires: according to consumer. (700-1400Mpa)
*Uprightness wire space: 5cm-60cm
*High area: 50cm-200cm
*Length for one rolls: 25m-200m
|
No. |
Type |
Specification |
Total Weight (kg) |
Dia ( top & bottom) |
Dia (inner) |
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
19.3 |
2.5 |
2 |
|
2 |
8/150/902/50 |
89+102+114+127+140+152+178 |
21.6 |
2.5 |
2 |
|
3 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
23.6 |
2.5 |
2 |
|
4 |
9/150/991/50 |
89+89+102+114+127+140+152+178 |
23.9 |
2.5 |
2 |
|
5 |
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
26 |
2.5 |
2 |
|
6 |
10/150/1194/50 |
89+89+102+114+127+140+152+178+203 |
27.3 |
2.5 |
2 |
|
7 |
10/150/1134/50 |
89+102+114+127+140+152+178+203+229 |
28.4 |
2.5 |
2 |
|
8 |
12/150/1422/50 |
89+89+102+114+127+140+152+178+203+229 |
30.8 |
2.5 |
2 |
|
9 |
12/150/1650/50 |
89+89+102+114+127+140+152+178+203+229 |
34.29 |
2.5 |
2 |
|
Other sizes can be customized |
|||||
*Features
1. Galvanized knot, reasonable design
2. Beautiful surface, strong corrosion resistance.
3. Simple in structure;
4. Easy maintenance;
5. Short installation period;
6. Less weight;
7. Easy for transport;
8. Good ventilation.
*Advantage:
Extra and uniformly zinc coated.
Wire tension curve.
Pre-stripped rolls (all of the Staylock fence rolls comes with 18"
of vertical stays removed from both ends of the roll).
Extra strong bottom and top wire lines.
Get the Best Price for
MOQ： 10 rolls
