Detail Information
Filter disc, also named wire mesh filter disc, screen filter disc, is made of metal wire mesh, such as galvanized wire
mesh, phosphor bronze wire mesh, stainless steel wire mesh, black iron cloth. The operation principle of filter discs is
to separate or screen one substance from another. Thus, you can remove unwanted contaminants from fluid, air, or
solid. We offer filters of different materials, different shapes, different layers, different weaving methods, different
wrapping edge materials, different filter precision, etc. The overall dimensions can be produced to satisfy your specific
requirements, such as filter particles size, flow rate, contact liquid, physical space limitations.
Different classification methods
· According to the filter discs material: black wire cloth filter discs, copper filter discs, galvanized steel filter
discs, stainless steel filter discs.
· According to the technology: perforated metal filter discs, expanded metal wire mesh filter discs and woven
wire mesh filter discs.
· According to edge processing method: spot welding filter, edge wrapping filter.
· According to weaving types: plain weave filter discs, twill weave filter discs, dutch weave filter discs, etc.
Specifications
· Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
· Wire diameters: 0.01 mm - 5 mm.
· Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
· Weaving methods: plain weave, twill weave, dutch weave, etc.
· Layer: single layer or multiple layers.
· Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.
· Marginal materials: copper, aluminum, stainless steel, rubber, etc.
· Filtration precision: 0.2 µm - 100 µm.

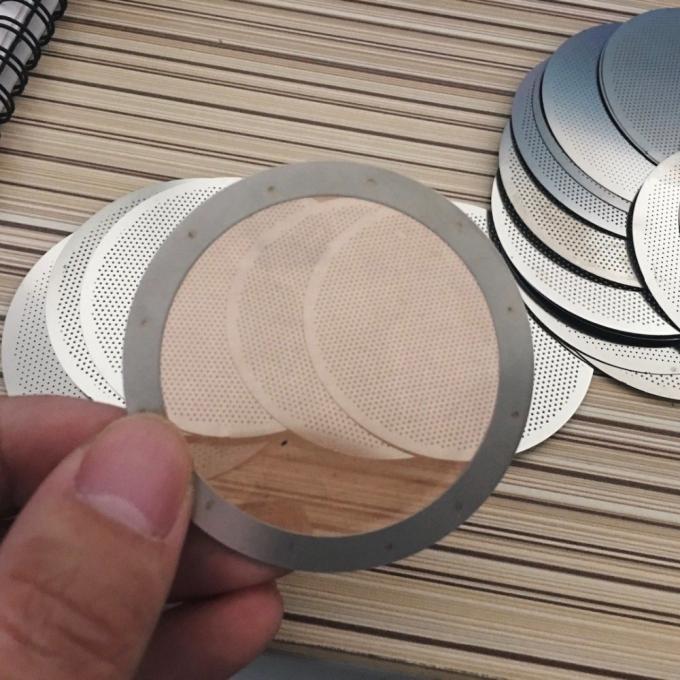

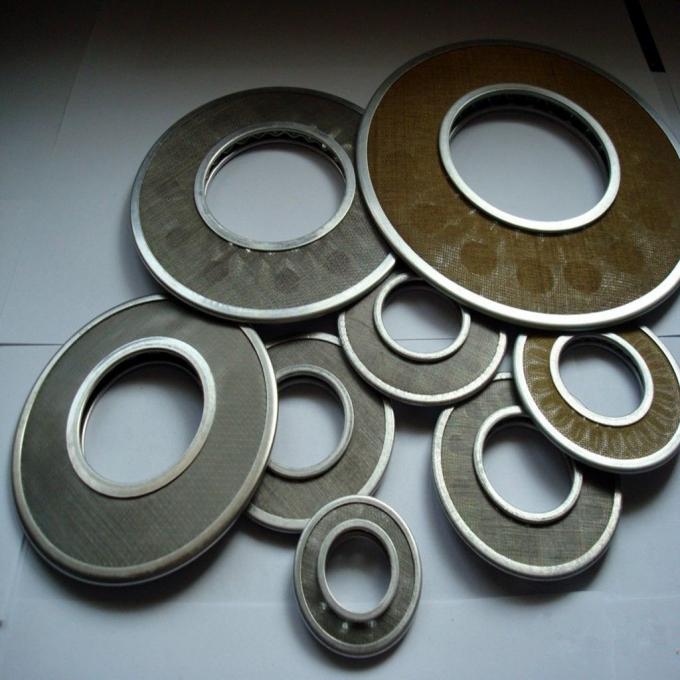

Filter disc can be produced with or without wrapping edge. Stainless steel filter disc can be produced with different layers.

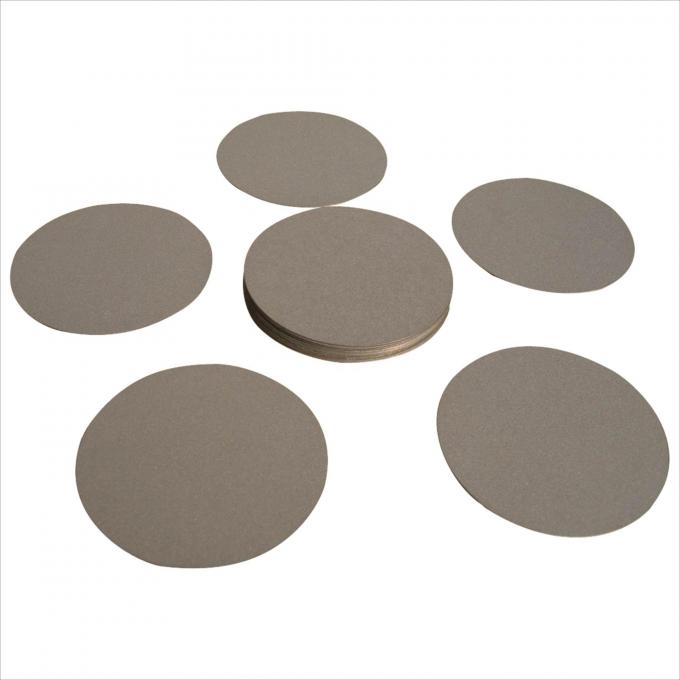

Stainless steel filter disc can be produced with different layers according to your specific requirements
Filter disc' sizes can be produced according to your specific requirements.

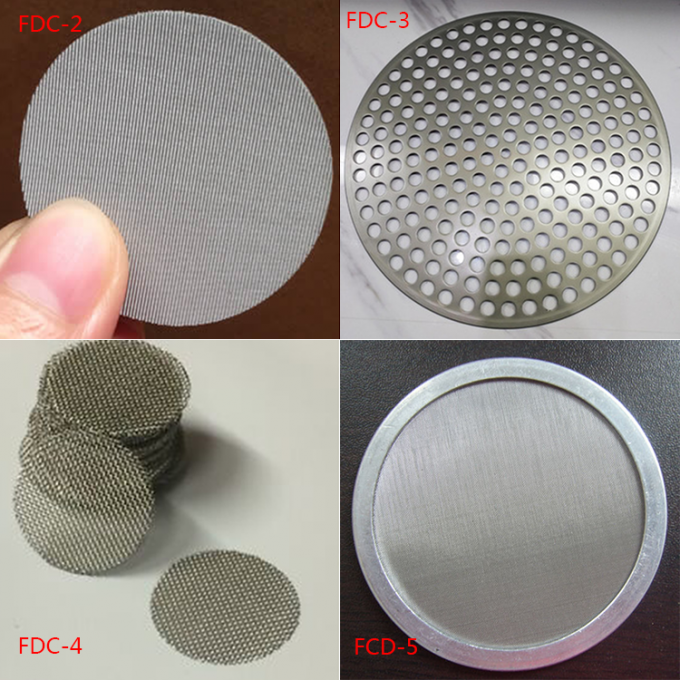

The shape of stainless steel filter disc: round, square, rectangular, ring, abnormal shape, etc.
