panel sheet fence

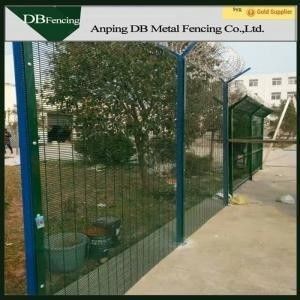

Curved wire fence is made of low carbon steel wire which has the features of high strength, beauty, uneasy deforming, quick and easy installation. They are widely used as protective belt in highway, railway and bridges, as security fence in airports, harbor, wharf and living sites. They are also used in city government, parks, lawn, zoos, lakes, roads and industrial sites for protection and isolation. They can also be found in hotels, supermarkets, recreation area for decoration of protection.
Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.
1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.
2. Processing of curved wire fence:
3. Curved Wire Fence With Square Post:
Panel:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.
Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.
Post:
This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.
Fastenings:
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.
Curved Wire Fence with Peach Post:
This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.
Fence Panel Specifications
|
Wire Diameter
(Vertical&Horizontal)mm
|
Mesh
(Width&Height)
mm
|
Panel Width
(m)
|
Panel Height
(m)
|
|
4/4
4/5
5/5
5/6
6/6
|
50*100/50*200;
55*100/55*200;
60*100/60*200;
65*100/65*200;
|
0.4-3.0 |
0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4 |
Fence Post Specifications
| Type |
Cross-Section (mm) |
Height(m |
| Insertion into ground directly |
70*100 |
0.8-2.7 |
|
Erected with flange on the parapet wall or
cement ground
|
70*100 |
0.8-2.3 |
| Insertion into ground directly |
50*70 |
0.6-2.2 |
|
Erected with flange on the parapet wall or
cement ground
|
50*70 |
0.3-1.9 |
5. Characteristics: Woven and welded, anti-corrosion, corrosion-resisting, durable, easy to withstand outdoor exposure, etc.
6. Forms of corrosion resistance: Electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coated.
7. Curvy Welded Fence Advantages:
- Excellent corrosion resistance, anti-aging and anti-aging property.
- Sunshine resistance and weather-proof.
- With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
- Have four horizontal bending rebar therefore it will strengthen the fence network.
- Not only has a beautiful outlook but also has a durable structure.
- Can withstand outdoor exposure.
- Easy and quick to transport and install.
- Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
- Bright, reflective colors stand out in day or night
- Easy transportation, save time and labor cost.
8. Curvy Welded Fence Applications:
- Mainly used in highway and railway bridge on both sides of the protection zone.
- Airports, ports, terminals security.
- Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
- Guest Houses, hotels, supermarkets and entertainment protective.
9. Curved Wire Fence Loading And Packing
Package : plastic film in high-quality steel pallet for 40'HQ container
10. Easy Installation
1) Erected into the ground directly: at first, concrete pile is made well and when installation, the post
and wire mesh should be installated synchronously and then
adjusted for a line to pour concrete finally. The way of installation is so easy that need not any fixed parts.
2) A mounting flange: The base should be finished in advance according to the drawing sheet before installation.
Then these bases are even and the distance of each one is the same. Post can be erected onto the ground
with flange in a way of welding or connecting bolt.
