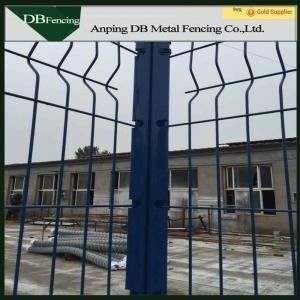

Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment

Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment

  • Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment
Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-115
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Material: Steel Wire, Galvanized Wire Characteristics: Easy To Withstand Outdoor Exposure
Application: Airports, Ports, Terminals Security. Treatment: Galvanized And Pvc Coated
High Light:

welded wire mesh fence

,

curved wire fence

Galvanized and pvc coated welded 3d wire mesh fence



Product Abstract:



Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence.
A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength.



Curved wire fence is made of low carbon steel wire which has the features of high strength, beauty, uneasy deforming, quick and easy installation. They are widely used as protective belt in highway, railway and bridges, as security fence in airports, harbor, wharf and living sites. They are also used in city government, parks, lawn, zoos, lakes, roads and industrial sites for protection and isolation. They can also be found in hotels, supermarkets, recreation area for decoration of protection.



Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.



1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.



2. Processing of curved wire fence:



Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment 0

3. Curved Wire Fence With Square Post:



Panel:

Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.

Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.

Post:

This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.

Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment 1

Fastenings:

The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.

4. Curved Wire Fence with Peach Post:



This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications



Wire Diameter

(Vertical&Horizontal)mm

Mesh

(Width&Height)

mm

Panel Width

(m)

Panel Height

(m)

4/4

4/5

5/5

5/6

6/6

50*100/50*200;

55*100/55*200;

60*100/60*200;

65*100/65*200;

0.4-3.0 0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

























Fence Post Specifications



Type Cross-Section (mm) Height(m
Insertion into ground directly 70*100 0.8-2.7

Erected with flange on the parapet wall or

cement ground

70*100 0.8-2.3
Insertion into ground directly 50*70 0.6-2.2

Erected with flange on the parapet wall or

cement ground

50*70 0.3-1.9




5. Characteristics: Woven and welded, anti-corrosion, corrosion-resisting, durable, easy to withstand outdoor exposure, etc.



6. Forms of corrosion resistance: Electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coated.



7. Curvy Welded Fence Advantages:



  1. Excellent corrosion resistance, anti-aging and anti-aging property.
  2. Sunshine resistance and weather-proof.
  3. With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
  4. Have four horizontal bending rebar therefore it will strengthen the fence network.
  5. Not only has a beautiful outlook but also has a durable structure.
  6. Can withstand outdoor exposure.
  7. Easy and quick to transport and install.
  8. Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
  9. Bright, reflective colors stand out in day or night
  10. Easy transportation, save time and labor cost.

8. Curvy Welded Fence Applications:



  1. Mainly used in highway and railway bridge on both sides of the protection zone.
  2. Airports, ports, terminals security.
  3. Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
  4. Guest Houses, hotels, supermarkets and entertainment protective.
  5.

 Anti - Corrosion 3D Steel Welded Wire Fence Galvanized / PVC Coated Treatment 2
