Outdoor Security Curved Welded Wire Fence For Railway And Bridge Protection

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB
Model Number:	DB-110

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

Name:

Wire Mesh Fencing

Surface:

Plastic Coated

High Light:

metal wire fence panels

curved wire fence

moss green plastic coated wire mesh fencing

Curved wire fence is made of low carbon steel wire which has the features of high strength, beauty, uneasy deforming, quick and easy installation. They are widely used as protective belt in highway, railway and bridges, as security fence in airports, harbor, wharf and living sites. They are also used in city government, parks, lawn, zoos, lakes, roads and industrial sites for protection and isolation. They can also be found in hotels, supermarkets, recreation area for decoration of protection.
Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.

Advantages:

Excellent corrosion resistance, anti-aging and anti-aging property.
Sunshine resistance and weather-proof.
With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
Have four horizontal bending rebar therefore it will strengthen the fence network.
Not only has a beautiful outlook but also has a durable structure.
Can withstand outdoor exposure.
Easy and quick to transport and install.
Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
Bright, reflective colors stand out in day or night
Easy transportation, save time and labor cost.

1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.

2. Processing of curved wire fence:

3. Curved Wire Fence With Square Post:

Panel:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.
Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.
Post:
This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.
Fastenings:
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.

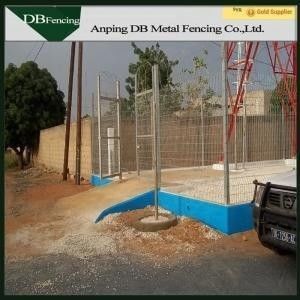

Outdoor Security Curved Welded Wire Fence For Railway And Bridge Protection 1
4. Curved Wire Fence with Peach Post:

This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications

Wire Diameter (Vertical&Horizontal)mm	Mesh (Width&Height) mm	Panel Width (m)	Panel Height (m)
4/4 4/5 5/5 5/6 6/6	50100/50200; 55100/55200; 60100/60200; 65100/65200;	0.4-3.0	0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

Fence Post Specifications

Type	Cross-Section (mm)	Height(m
Insertion into ground directly	70*100	0.8-2.7
Erected with flange on the parapet wall or cement ground	70*100	0.8-2.3
Insertion into ground directly	50*70	0.6-2.2
Erected with flange on the parapet wall or cement ground	50*70	0.3-1.9
