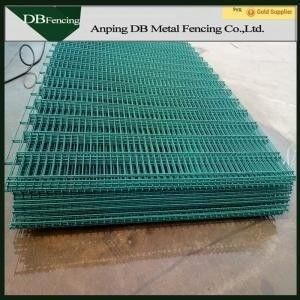

PVC Coated Welded Wire Mesh Fence In Highway Railway Bridge CE ISO Certification

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB
Model Number:	DB-092

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

Name:

Welded Mesh Fencing

Certification:

CE And ISO

Surface:

PVC Coated

High Light:

welded wire mesh fence

curved wire fence

CE and ISO China PVC coated welded mesh fencing

1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.

2. Processing of curved wire fence:

3. Curved Wire Fence With Square Post:

Panel:

Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.

Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.

Post:

This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.

PVC Coated Welded Wire Mesh Fence In Highway Railway Bridge CE ISO Certification 0

Fastenings:

The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.

Curved Wire Fence with Peach Post:

This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications

Wire Diameter

(Vertical&Horizontal)mm

Mesh

(Width&Height)

Panel Width

(m)

Panel Height

(m)

4/4

4/5

5/5

5/6

6/6

50*100/50*200;

55*100/55*200;

60*100/60*200;

65*100/65*200;

0.4-3.0

0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

Fence Post Specifications

Type	Cross-Section (mm)	Height(m
Insertion into ground directly	70*100	0.8-2.7
Erected with flange on the parapet wall or cement ground	70*100	0.8-2.3
Insertion into ground directly	50*70	0.6-2.2
Erected with flange on the parapet wall or cement ground	50*70	0.3-1.9

PVC Coated Welded Wire Mesh Fence In Highway Railway Bridge CE ISO Certification 1

Curved wire fence is made of low carbon steel wire which has the features of high strength, beauty, uneasy deforming, quick and easy installation. They are widely used as protective belt in highway, railway and bridges, as security fence in airports, harbor, wharf and living sites. They are also used in city government, parks, lawn, zoos, lakes, roads and industrial sites for protection and isolation. They can also be found in hotels, supermarkets, recreation area for decoration of protection.
