Temporary Chain Link Fence Panels Galvanized Or PVC Coated Anti - Climb

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB
Model Number:	DB-047

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

High Light:

chain link security fence

chain link construction fence

Temporary Chain Link Fence Panels & Barricades

Temporary fence panel benefits:

1. Quick and easy to install and can be easily re-located
2. Protects your valuable assets and protects you against Public Liability claims
3. Hinged gates can be attached to enable vehicular and machinery access
4. Panel stabilisers used to ensure sturdy fences on long runs or wind prone areas.
5. The new bracing system further ensures the integrity of the fence system in areas prone to high winds

1. Specification of chain link temporary fence:

Chain Link Fence Specs
Wire dia	13-12Guage(2.4--2.7mm)	12-11Guage(2.7--2.9mm	11Guage (3.0mm)
Opening		5050mm; 6060mm; 75*75mm
Application	Economy	Standard residential	Light commercial
Coating	Galvanized before weaving	Galvanized before coating	200g/m2
Frame Pipes		5050mm; 6060mm; 75*75mm
Height		1.8m , 2.1m
Width		2.1m , 2.4m , 2.5m , 2.9m

2. Details of chain link fence

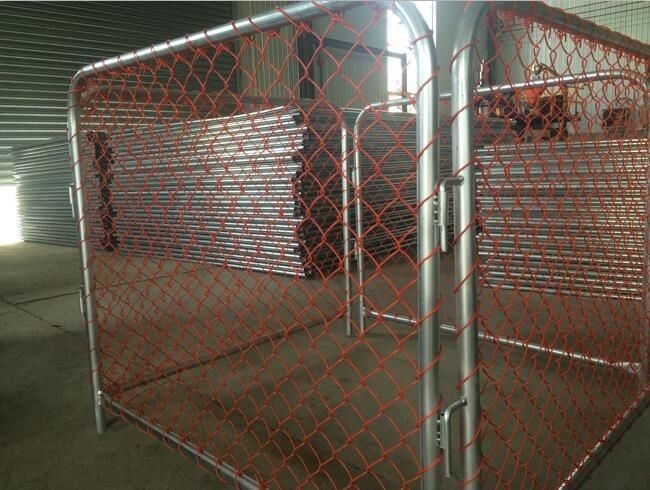

A. Panels:

Constructed of high strength tubular galanized tubing. Panel size is 12' wide x 6' tall. Panels are filled with galvanized chain link mesh and wrapped on all four sides to ensuring both longevity and easy of loading and unloading when moving from one project to the next.

B. stands:

Panels stands are perfect for any type of ground they are wide in stance to ensure stability while light weight and designed to stack when transporting from and too jobsite.

C. Fastenings:

The panels and posts are jointed together with bolts or rivets, using the steel flat bar,or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.

3. Packing and Deliverying:

1. it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.

2. it has 4 metal corners to keep the pallet more strong.

3. it has metal plate under the plastic bandage to reduce the a pressure of fence panels.

4. wooden plate on top which can protect the fence panels avoid being crushed by other pallets

4. Advantage:

Easy installation or maintenance replacement

Can be easily relocated

Minimum repair required only damaged panels to be replaced

Standard/custom modular sizes

Temporary Chain Link Fence Panels Galvanized Or PVC Coated Anti - Climb 0
