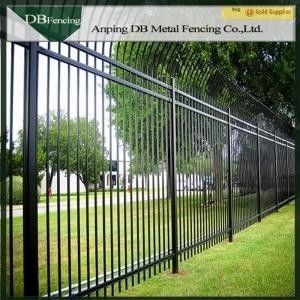

Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden

Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden

  • Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden
Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-244
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Material: Q235 Galvanized Steel Pipe Frame Finishing: Hot Dipped Galvanized Or Powder Coated
Sample: Available Color: Black , White , Green Or Etc;
Item: Wrought Iron Fence Mesh
High Light:

wrought iron picket fence

,

decorative wrought iron fence

Wrought Iron Fence Mesh


Our Wrought Fence Mesh is made of steel pipes and then assembling by hands. After that, the surface can be powder coated into different colors.





Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden 0Outdoor Wrought Iron Security Fence / Powder Coated Picket Fencing For Garden 1





1. Material of Wrought Iron Fence Mesh

High Quality Q235 Galvanized steel pipe

2. Surface treatment ofWrought Iron Fence Mesh

Galvanized and PVC coating

PVC Coating Colors: green, white, black,yellow,red etc.

3. Process of Wrought Iron Fence Mesh

The Steel Fence is made of steel pipes and then assembling by hands. After that, thesurface can be powder coated into different colors.

A) Fence Panel Process

straighten & cut short the wire-Welding-Bending-Galvanizing- Parkerizing- powder/pvc coating - packing

B) Fence Post Process

cut short the tube-hole frilling-Galvanizing-Sandblasting-powder/pvc coating-rivet nuts installing

4. Property of Wrought Iron Fence Mesh

corrosion resisting, aging-resistant,sunshine-resistant and weather-resistant, easy to transport and easy installed.

5. Wrought Iron Fence Mesh Specification



1800mm x 2400mm
2100mm x 2400mm
2400mm x 2400mm
3000mm x 2400mm



Wrought Iron Fence Mesh Upright pailings ,Upright pailing picket are crimped spear deterrent uninvitors ,intruders

25mm x 25mm x 0.80mm
25mm x 25mm x 1.00mm
25mm x 25mm x 1.20mm


Wrought Iron Fence Mesh rails available 2,3 4rails depand on customer requirements avaiable punched rails and

full weld rails with upright pails



40mm x 40mm x 1.2mm
40mm x 40mm x 1.3mm
50mm x 50mm x 1.5mm


Wrought Iron Fence Post


65mm x 65mm x 2.0mm x 2700mm
65mm x 65mm x 2.0mm x 3000mm
100mm x 100mm x 3.0mm x 3000mm
60mm x 60mm x 3000mm
60mm x 60mm x 3000mm



Wrought Iron Fence Mesh accessories Included 1 pcs post caps plus 4 set security bracket and 12 pcs self drilling screw


6. Wrought Iron Fence Mesh treatment



Pre-Galvanized then electrostatic powder spray coated

Full Hot dipped galvanized then electrostatic powder spray coated



Residential Fence Grade (G60 Galvanized Steel)



Picket: 16mmx16mmx1.0mm ( 5/8'sq x 19ga)

Rail: 35mmx 35mm x 1.2mm(1-3/8'sq x 18ga)

Post: 50mmx50mmx1.5mm (2'sq x 16ga)

Fence Width: 2400mm(8)

Fence Height(mm): 914mm,1067mm, 1219mm,1372mm,1524mm,1829mm

Fence Height(Feet):3, 3.5, 4, 4.5, 5, 6



- Post enlarged by 25% from 2” to 2-1/2” square
- Post resalesrced by internal rib to resist bending
- Rail enlarged by 25% from 1” to 1-1/4” high
- Rail resalesrced internally to resist side impact
- Picket enlarged by 25% from 5/8” to 3/4” square
- Holes to mount rail eliminated from post design;
replaced by stronger exterior bracket
