Anping DB Metal Fencing Co.,Ltd---Top 5 Fencing Supplier
Place of Origin: | Hebei, China |
Brand Name: | DB |
Model Number: | DB-169 |
Minimum Order Quantity: | 50PCS |
---|---|
Price: | Negotiable |
Surface: | Powder Painted | Material: | Carbon Steel Wire |
---|---|---|---|
Application: | Site Security ,construction Sites | Color: | Blue |
High Light: | temporary barrier fence,temporary security fencing |

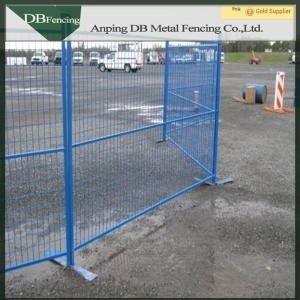

Canada standard 6ft x 10 ft steel welded wire fence panels
Temporary fence also named portable fence,removable fence,canada fencing,construction fence,temporary security fence.
We provides durable, modular and secure steel temporary fence panels
for construction projects and special events.
Our temporary fencing is all steel construction with welded wire mesh in
10’ modular fence panels designed for quick and efficient set up and tear down.
Product Abstract:
1) Material: Low carbon steel Q235;
2) Opening: 75 x 75, 75 x 100, 60 x 150, 50 x 50, 60 x 60mm, and others;
3) Length x width: 2,100 x 2,400, 1,800 x 2,400, 2,100 x 2,900, 2,100 x 3,300mm, and others;
4) Frame: 25, 32, 38, 40, 42, and 48mm;
5)Treatment: Hot dipped galvanized or powder coated;
Process Of Temporary Fence
Material----Straighten & cut short----Welded---electric galvanized/hot-dipped galvanized----Parkerising---
PVC coated /sprayed----Packing----Shipment
Specifications of Canada Standard Temporary Fence |
|
Wire |
From 3.00mm ---to 5.00mm |
Opening |
50 x 100mm, 60 x 120mm & 100 x 300mm |
Height Length |
H: 3.75, 5, 6 & 7ft; L: 8, 8.5, 9, 9.5 & 10ft etc |
Frame & |
30x30x2mm, 30x30x1.5mm, 25x25x2mm, 25x25x1.5mm & 20x20x2mm, etc |
Feet |
760x120x6mm 760x100x8mm |
Popular Model of Canada Standard Temporary Fence |
|
Dimensions |
3000*1800mm (W*H) |
Wire diameter |
4.0mm |
Opening |
50*100mm |
Frame O.D. |
25*25mm |
Middle horizontal pipe O.D. |
20*20mm |
Block |
900*80*7mm |
Color |
dark green, yellow, red, blue, and other RAL colors |
Steel Temporary Fence Feet
• 8mm plate, 19mm holes at each end for pins or stakes
• 150 mm solid rod, one square, one round
• Electro Galvanized finish
Temporary Fence Top Clamp
Application:
Temporary is widely for site security,school board portable site safety,residential construction sites ,commerical useds,apartments,crowd control,vendor security,special events(concerts,festival,cultural,parades,sporting) etc
