Portable Construction Freestanding Chain Link Fence Panels ASTM A392-06 Standards

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB
Certification:	ISO9001,CE
Model Number:	TCLF---006

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable
Packaging Details:	In steel Pallet
Delivery Time:	15 days for 500 panels
Supply Ability:	15 days for 500 panels

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

Material:	Low Carbon Steel Q235	Chain Link Mesh:	50x50mm,60x60mm
Wire Dia.:	2.3mm,2.9mm	Frame Tube:	32x2.0mm
Length:	8ft,10ft,12ft	Height:	4ft,6ft
Finish:	Hot Dipped Galvanized	Steel Clamps:	2
Steel Stands:	762mm X460mm X203mm	Standard:	ASTM A392-06 Standards
High Light:	portable chain link fence , chain link panel fence

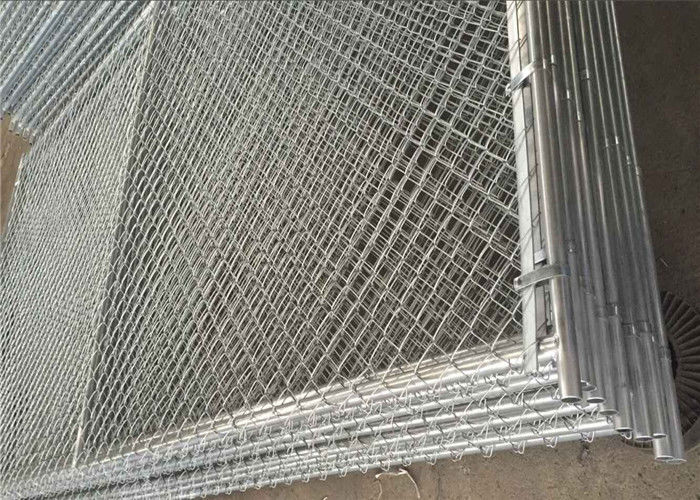

Chain Link Fence panels comply with ASTM A392-06 standards

Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

Temporary chain link fence is also called mobile fence mesh, temporary police. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market .

In addition, Temporary Chain Link Fence with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

Portable Construction Freestanding Chain Link Fence Panels ASTM A392-06 Standards 0

1. 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
Design		North America,Australia & New Zealand
Made		China
1) Panel Specification
Panel Size		6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft
Frame		1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire		9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size		2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace		Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment		Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)		AS 1725-2010 – Chain – Link Fabric Security Fences and Gates. AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial, Aquatic and General Use. AS 54687-2007 – Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size		750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment		Hot dipped Galvanised;
3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment	Hot Dipped Galvanised;
Weight	0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut);

4) Packing	In Bulk
A.Qty In 1x20’GP	/ set ( 1 panel+1 steel +1 clamp with bolt and nut);
B.Qty In1x40’HC	/ sets ( 1 panel +1 clamp with bolt and nut);

5)Shipping Time	15-20 days for 1x40’HC after receiving the deposit;
6)Payment	30% deposit by TT, and the balance paid at sight of BL copy;

1. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Quality Testing

TEMPORARY CHAIN LINK FENCE PANELS

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Base Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.
Your High quality steel temporary chain link fence will look greater and be safer.
Portable Construction Freestanding Chain Link Fence Panels ASTM A392-06 Standards 2

3. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Steel Clamp

4. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Loading

WHY CHOOSE US?

Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.
Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.
Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.
One-stop supply system. All needed hardware are included in the bulk cargo.
Reliable and professional advice. As a company integrating production and sales, we'd like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.
Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
After-sales service

Our after-sales service start immediately after signing the contract. 1. No matter FOB or CIF the price term is we would try our best to find a lowest
freight cost for customers' reference.
2. Do our best to help customer arrange the shipment and customs clearance. 3. Installation, maintenance and repair instructions with full information.
4.3-8 years warranty depends to different product
5. Accept Changing or Refunding if the products cannot be installed rightly
