Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''

  • Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
  • Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
  • Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
  • Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
  • Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''
Product Details:
Place of Origin: China
Brand Name: DB Fencing
Certification: ISO9001,CE
Model Number: TCLF--012
Payment & Shipping Terms:
Minimum Order Quantity: 50 panels
Price: USD 25-30/Panel
Packaging Details: In steel pallet
Delivery Time: 15 days
Payment Terms: TT, Western Union, MoneyGram
Supply Ability: 15 days for 1x40'HC
Contact Now
Detailed Product Description
Material: Galvanized Wire Mesh Size: 50x50mm
Height: 6ft Length: 8ft, 10ft, 12ft
Galvanzied: 270g/sqm Stands: 750mm L X 100 W X 8.0mm
Clamp: ,80mm,90mm,100mm Hole Spacing(C/C) Packing: In Steel Pallet
Delivery Time: 15 Days Certificate: AS 54687-2007
High Light:

portable chain link fence

,

chain link panel fence

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8''

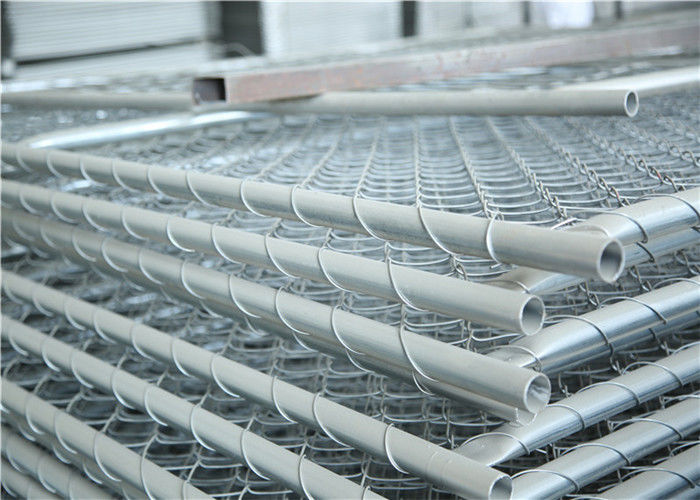

Temporary Chain Link Fencing- DB Fences Company are fastened together at the top with saddle
clamps to provide a free-standing fenceTemporary chain link fence panels allows for both security and
safety for many job-site applications.
Our chain-link panels come with all the required hardware, using high quality mild steel wire and galvanized
tube as raw material.The finished temporary chain link fencing is strong enough and durable for all site-specific
requirement, either uneven ground or sloping sites.
In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2'', 2-1/4'', 2-2/5"
mesh opening, frame outside diameter of 1-1/4" and 1-3/8'',plus the hot dipped galvanized surface treatment,
its service life can be up to 10 years.

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8'' 0



Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and
residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level of
security and safety.

1. 6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel

Design

North America,Australia & New Zealand

Made

China

1) Panel Specification

Panel Size

6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft

Frame

1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.

Chain Link Mesh Wire

9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

Chain Link Mesh Size

2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.

Brace

Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

Treatment

Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised

Standard (Standard panels include barbed wire as extra security)

AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.

AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use.

AS 54687-2007 – Temporary Fencing and Hoarding.



2) Steel Feet Specification

Size

750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base

Treatment

Hot dipped Galvanised;

3) Clamp Specification

Size

Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);

Treatment

Hot Dipped Galvanised;

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure
and corrosion resistance in an outdoor construction site.
360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence
structure. This can ensure that the temporary fencing is not damaged during the frequent moving
process, and will not be corroded even in hostile environment.
Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and
sometimes wrapped around the frame tube with tension bars and tension bands by hand in a
rather tension way.
Another option sturdy attached way. Available flat bar the use clamps to connect the two
adjacent panels.

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8'' 1
2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized
1'' or 1-3/8" diameter tubing and welded into an approximate 16" x 36" rounded rectangles.
With two smaller diameter uprights welded in place to accept the outer frame, these stands
ensure stability and reliability.

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8'' 2
3.Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect
two panels together.

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8'' 3
4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport
and secure into place, above-ground panel fencing provides a sturdy and reliable fence for
many job-site applications.

Buy Portable Chainlink Fence Panels 6ft x 12ft, 6ft x 10ft, O.D. 1-1/4" and 1-3/8'' 4
5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include

• Commercial Construction Sites

• Housing Developments

• highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction
