ISO9001 Steel Temporary Site Hoarding Fence Panels In Construction Sites

Steel Temporary Site Hoarding Fence Panels Suppliers In Construction Sites

temporary-hoarding-catalog.pdf

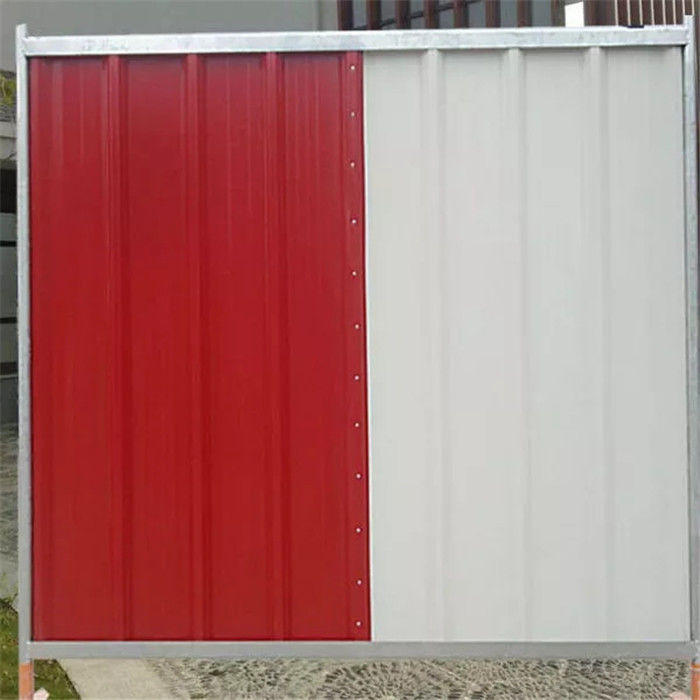

Temporary Hoarding Fence is a complete privacy and safety protecting fence solution in many constructuon work site, which is also called

hoarding panels, steel hoarding panels, metal hoarding. This Temporary Hoarding panel use 0.4mm-0.65mm pre-galvanized and powder coated

sheet then pressing process, welded with galvanized U channels applied at the top and bottom end of the corrugated steel sheets, and O.D.

32/38/40/42/48 mm vertical post, additionly rubber or HDPE base feet.

1. Temporary Hoarding Panels Speicifications

• Material: Pre-galvanized steel frame and color hoading plate

• Hoarding Panels Wall Thick: 0.4–0.65 mm

• L × H: 2500 x 1800mm, 2000 × 2100mm, 2400 × 2100mm, 2000 x 2500mm, 2300m x 2100m , 1800X2240mm,

​

2000X2160mm, customized sizes

• U-Profile: 50-30-50mm, 50-40-50mm, 60-40-60mm

• Frame Pipe: O.D. 32/38/40/42/48 mm

• Base Feet: Rubber or steel base feet

• Color: White, Blue, Red

Temporary Hoarding Panels Process & Details



1. Temporary Hoarding Panels Flat Processing	2. Temporary Hoarding Panels Corrugated Process
3. Temporary Hoarding Panels Welding Point	4. Temporary Hoarding Panels Rivet With Bolts
5. Blue Color of Temporary Hoarding Panels	6. Temporary Hoarding Panels Loading Into Container

2. Pedestrian hoarding gates and Double Swing gate

3. Temporary Hoarding Panels Bracing

4. Temporary Hoarding Panels Application

Construction sites

Industrial sites

Domestic housing sites

Commercial sites

Environmental protection areas

5. Temporary Hoarding Panels Features

Be suitable for uneven ground

Easy to assemble, disassemble, store and transport

To provide excellent privacy & safety

No damage to ground

Hoarding panels with ripples and various base feet provide high stability.
