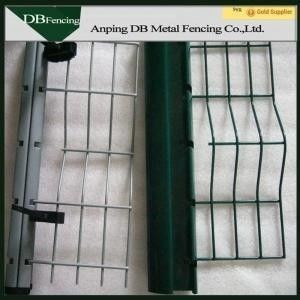

Hot Dip Galvanized Curved Welded Wire Garden Fence PVC Coated Surface

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB
Model Number:	DB-069

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

Material:

Hot-dip Galvanized Wire

Surface:

PVC Coated

Color:

Green

High Light:

metal wire fence panels

curved wire fence

Hot-dip galvanized and PVC coated welded wire mesh panel

Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.
Hot Dip Galvanized Curved Welded Wire Garden Fence PVC Coated Surface 0
Application

Road and transit (highway, railway, road, city transit)
Science & Industry Zone (factory, industry zone, sightseeing zone, new pattern farm)
Private grounds (courtyard, villadom )
Public grounds (park, zoo, train or bus station, lawn)
Commercial grounds (corporation, hotel, supermarket)

.
1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.
2. Processing of curved wire fence:

3. Curved Wire Fence With Square Post:
Panel:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.
Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.
Post:
This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.
Hot Dip Galvanized Curved Welded Wire Garden Fence PVC Coated Surface 3
Fastenings:
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.
4. Curved Wire Fence with Peach Post:

This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications

Wire Diameter (Vertical&Horizontal)mm	Mesh (Width&Height) mm	Panel Width (m)	Panel Height (m)
4/4 4/5 5/5 5/6 6/6	50100/50200; 55100/55200; 60100/60200; 65100/65200;	0.4-3.0	0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

Fence Post Specifications

Type	Cross-Section (mm)	Height(m
Insertion into ground directly	70*100	0.8-2.7
Erected with flange on the parapet wall or cement ground	70*100	0.8-2.3
Insertion into ground directly	50*70	0.6-2.2
Erected with flange on the parapet wall or cement ground	50*70	0.3-1.9

Hot Dip Galvanized Curved Welded Wire Garden Fence PVC Coated Surface 4

Curved Wire Fence Loading And Packing

Package : plastic film in high-quality steel pallet for 40'HQ container

Easy Installation

1) Erected into the ground directly: at first, concrete pile is made well and when installation, the post
and wire mesh should be installated synchronously and then
adjusted for a line to pour concrete finally. The way of installation is so easy that need not any fixed parts.
2) A mounting flange: The base should be finished in advance according to the drawing sheet before installation.
Then these bases are even and the distance of each one is the same. Post can be erected onto the ground
with flange in a way of welding or connecting bolt.

Hot Dip Galvanized Curved Welded Wire Garden Fence PVC Coated Surface 5
