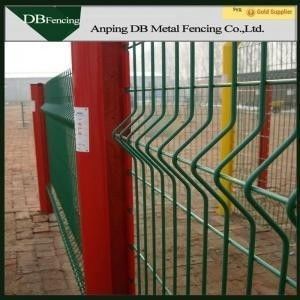

High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing

High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing

  • High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing
High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-069
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Item: Wire Mesh Fence Characteristics: Corrosion-resisting, Durable
Color: Many Colors Available Treatment: PVC Coated
High Light:

welded wire mesh fence

,

curved wire fence



PVC coated wire mesh fence netting with many colors

.

Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.



Characteristics: Woven and welded, anti-corrosion, corrosion-resisting, durable, easy to withstand outdoor exposure

High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing 0High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing 1



1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.



2. Processing of curved wire fence:



3. Curved Wire Fence With Square Post:



Panel:

Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.

Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.

Post:

This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.

Fastenings:

The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.

4. Curved Wire Fence with Peach Post:

This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications



Wire Diameter

(Vertical&Horizontal)mm

Mesh

(Width&Height)

mm

Panel Width

(m)

Panel Height

(m)

4/4

4/5

5/5

5/6

6/6

50*100/50*200;

55*100/55*200;

60*100/60*200;

65*100/65*200;

0.4-3.0 0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

























Fence Post Specifications



Type Cross-Section (mm) Height(m
Insertion into ground directly 70*100 0.8-2.7

Erected with flange on the parapet wall or

cement ground

70*100 0.8-2.3
Insertion into ground directly 50*70 0.6-2.2

Erected with flange on the parapet wall or

cement ground

50*70 0.3-1.9




5. Curved Wire Fence Loading And Packing



Package : plastic film in high-quality steel pallet for 40'HQ container



High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing 2





6. Easy Installation



1) Erected into the ground directly: at first, concrete pile is made well and when installation, the post

and wire mesh should be installated synchronously and then

adjusted for a line to pour concrete finally. The way of installation is so easy that need not any fixed parts.


2) A mounting flange: The base should be finished in advance according to the drawing sheet before installation.

Then these bases are even and the distance of each one is the same. Post can be erected onto the ground

with flange in a way of welding or connecting bolt.





High Strength Curvy Welded Wire Fence , Plastic Coated Wire Mesh Fencing 3
