PVC Coated Curved Metal Wire Mesh Fence With Peach Post Easily Assembled

Product Details:

Place of Origin:	Hebei, China
Brand Name:	DB

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

High Light:

welded wire mesh fence

metal wire fence panels

PVC coated curved Peach post metal wire mesh fence

Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.

1. Material: Low carbon steel wire, galvanized wire and stainless steel wire.

2. Processing of curved wire fence:

3. Curved Wire Fence With Square Post:

Panel:

Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 2.0-8.0mm., It obtains high strong powers to resist the construction.

Fence size: 200 mm x 50 mm x 2.5 Meters x from 630mm - 2630mm or available on request.

Post:

This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat.The finished surface usually is Galvanized and Powder coating, or alternatively.

Fastenings:

The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.This also can be designed as the special clients requests.

4. Curved Wire Fence with Peach Post:

This system usually choose Peach Post (50*70mm, 70*100mm ), with the high strength and so on. With plastic caps or Roofing rainhat.

Fence Panel Specifications

Wire Diameter

(Vertical&Horizontal)mm

Mesh

(Width&Height)

Panel Width

(m)

Panel Height

(m)

4/4

4/5

5/5

5/6

6/6

50*100/50*200;

55*100/55*200;

60*100/60*200;

65*100/65*200;

0.4-3.0

0.6;0.8;1.0;1.2;1.4;1.6;1.8; 2.0; 2.2; 2.4

Fence Post Specifications

Type	Cross-Section (mm)	Height(m
Insertion into ground directly	70*100	0.8-2.7
Erected with flange on the parapet wall or cement ground	70*100	0.8-2.3
Insertion into ground directly	50*70	0.6-2.2
Erected with flange on the parapet wall or cement ground	50*70	0.3-1.9

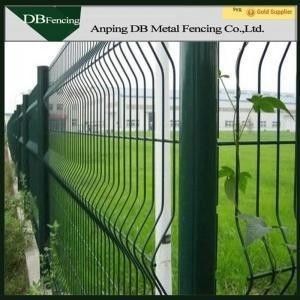

PVC Coated Curved Metal Wire Mesh Fence With Peach Post Easily Assembled 0

5. Characteristics: Woven and welded, anti-corrosion, corrosion-resisting, durable, easy to withstand outdoor exposure, etc.

6. Forms of corrosion resistance: Electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coated.

7. Applications:

Mainly used in highway and railway bridge on both sides of the protection zone.
Airports, ports, terminals security.
Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
Guest Houses, hotels, supermarkets and entertainment protective.
