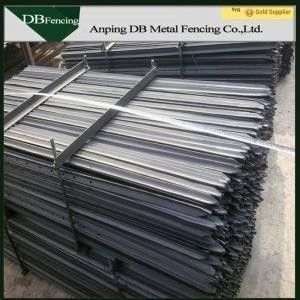

Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled

Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled

  • Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled
Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-117
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Material: Low Carbon Steel Q235 Length:: 0.45-3.0m
Feature: Easily Assembled,Eco Friendly,Waterproof Frame Finishing: UV Resistance
High Light:

steel y post

,

metal star pickets

Warehouse security fence with Y post



Y posts also named as Star Picket, Star Post, Metal Picket, Steel Post, Steel Picket, Fence Post, etc are widely used in installing Field fence and other fence such as cattle fence,sheep netting fence and game fence. In cross-section they form a three-pointed star, about 10 cm in diameter. One end is pointed so the steel post
can be more easily hammered into the ground, and the other end is flat to suit the hammer. Holes are pre-drilled along the length of the post to allow wires to be attached to the picket for fixing to Temporary Fence, Barrier Mesh etc.


1. Material of star picket: Low carbon steel Q235

2. Unit weight:1.58kg/m, 1.86kg/m, 1.9kg/m, 2.04kg/m.

3. Length: 0.45-3.0m.
Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled 0
4. Surface treatment:
Black star pickets: Black (Tar) Bitumen Coated.
Galvanised star pickets: Hot Dipped Galvanized.
Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled 1
5. Packing:10 pcs/Bundle, 400pcs/pallet.

Y Post / Star Picket / Star Post
Measurement0.45M0.60M0.90M1.35M1.50M1.65M1.80M2.10M2.40M
SPECpcs/mtpcs/mtpcs/mtpcs/mtpcs/mtpcs/mtpcs/mtpcs/mtpcs/mt
1.58kg/m14061054703468421386351301263
1.86kg/m1195896597398358326299256224
1.90kg/m1170877585390351319292251219
2.04kg/m1089817545363326297272233204



Hole Quantity for Australia and New Zealand
Length0.45M0.60M0.90M1.35M1.50M1.65M1.80M2.10M2.40M
Size(20-22MM) × (20-22MM) × (30-32MM)
Thickness2.5MM-3.2MM
Holes ( Australia)3351114141477
Holes (New Zealand) 7 778




Processing of star picket:

Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled 2

Y post caps and Driver:


Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled 3


Packaging & Delivery
Packaging Details: In steel pallet;
Delivery Time: 15-20 days after receiving the deposit;

Bitumen / Galvanized Steel Star Pickets Y Post UV Resistance Easily Assembled 4
