Place of Origin: | Hebei, China |
Brand Name: | DB |
Model Number: | DB-139 |
Minimum Order Quantity: | 50PCS |
---|---|
Price: | Negotiable |
Treatment: | Black (Tar) Bitumen Coated Or Galvanized; | Material: | Low Carbon Steel Q235; |
---|---|---|---|
Feature: | Easily Assembled,Eco Friendly | Color: | Customer Requirement |
Frame Material: | Metal | ||
High Light: | steel y post,metal star pickets |
1. Material of star picket: Low carbon steel Q235
2. Unit weight:1.58kg/m, 1.86kg/m, 1.9kg/m, 2.04kg/m.
3. Length: 0.45-3.0m.
4. Surface treatment:
Black star pickets: Black (Tar) Bitumen Coated.
Galvanised star pickets: Hot Dipped Galvanized.
Product Description
Y posts also named as Star Picket, Star Post, Metal Picket, Steel Post, Steel Picket, Fence Post, etc are widely used in installing Field fence and other fence such as cattle fence,sheep netting fence and game fence.
In cross-section they form a three-pointed star, about 10 cm in diameter. One end is pointed so the steel post can be more easily hammered into the ground, and the other end is flat to suit the hammer. Holes are pre-drilled along the length of the post to allow wires to be attached to the picket for fixing to Temporary Fence, Barrier Mesh etc.
5. Packing:10 pcs/Bundle, 400pcs/pallet.
Y Post / Star Picket / Star Post | |||||||||
Measurement | 0.45M | 0.60M | 0.90M | 1.35M | 1.50M | 1.65M | 1.80M | 2.10M | 2.40M |
SPEC | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt | pcs/mt |
1.58kg/m | 1406 | 1054 | 703 | 468 | 421 | 386 | 351 | 301 | 263 |
1.86kg/m | 1195 | 896 | 597 | 398 | 358 | 326 | 299 | 256 | 224 |
1.90kg/m | 1170 | 877 | 585 | 390 | 351 | 319 | 292 | 251 | 219 |
2.04kg/m | 1089 | 817 | 545 | 363 | 326 | 297 | 272 | 233 | 204 |
Hole Quantity for Australia and New Zealand | |||||||||||||||
Length | 0.45M | 0.60M | 0.90M | 1.35M | 1.50M | 1.65M | 1.80M | 2.10M | 2.40M | ||||||
Size | (20-22MM) × (20-22MM) × (30-32MM) | ||||||||||||||
Thickness | 2.5MM-3.2MM | ||||||||||||||
Holes ( Australia) | 3 | 3 | 5 | 11 | 14 | 14 | 14 | 7 | 7 | ||||||
Holes (New Zealand) | 7 | 7 | 7 | 8 |

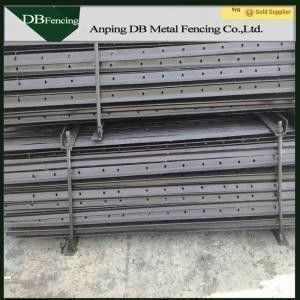

Processing of star picket:
Gallery of star picket application:
