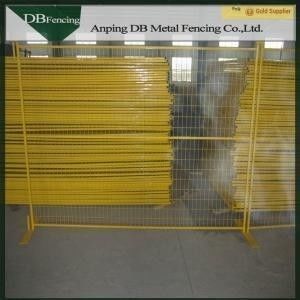

Yellow Color Steel Portable Temporary Fence Panels Powder Coated Treatment

Yellow Color Steel Portable Temporary Fence Panels Powder Coated Treatment

  • Yellow Color Steel Portable Temporary Fence Panels Powder Coated Treatment
Yellow Color Steel Portable Temporary Fence Panels Powder Coated Treatment
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-238
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Material: Low Carbon Steel Q235; Treatment: Hot Dipped Galvanized Or Powder Coated;
Color: Green, Grey, Brown, Black, White Type: Removable Fence
High Light:

security fence canada

,

temporary barrier fence



 powder coated canada temporary fence panles with yellow color


Temporary Fencing is a self-supporting and modular system, which is interlocking and portable.

The different systems vary in height and width. The panels are sheeted with a combination of synthetic material, chain link fabric and welded mesh.





Product Abstract:

1) Material: Low carbon steel Q235;
2) Opening: 75 x 75, 75 x 100, 60 x 150, 50 x 50, 60 x 60mm, and others;
3) Length x width: 2,100 x 2,400, 1,800 x 2,400, 2,100 x 2,900, 2,100 x 3,300mm, and others;
4) Frame: 25, 32, 38, 40, 42, and 48mm;
5)Treatment: Hot dipped galvanized or powder coated;


 Process Of Temporary Fence



Material----Straighten & cut short----Welded---electric galvanized/hot-dipped galvanized----Parkerising---PVC coated /sprayed----Packing----Shipment



Temporary Fence Panel (Canada)

Specifications of Canada Standard Temporary Fence

Wire

From 3.00mm ---to 5.00mm

Opening

50 x 100mm, 60 x 120mm & 100 x 300mm

Height

Length

H: 3.75, 5, 6 & 7ft;

L: 8, 8.5, 9, 9.5 & 10ft etc

Frame &
Middle pipe

30x30x2mm, 30x30x1.5mm, 25x25x2mm, 25x25x1.5mm & 20x20x2mm, etc

Feet

760x120x6mm

760x100x8mm

Popular Model of Canada Standard Temporary Fence

Dimensions

3000*1800mm (W*H)

Wire diameter

4.0mm

Opening

50*100mm

Frame O.D.

25*25mm

Middle horizontal pipe O.D.

20*20mm

Block

900*80*7mm

Color

dark green, yellow, red, blue, and other RAL colors





Steel Temporary Fence Feet





• 8mm plate, 19mm holes at each end for pins or stakes
• 150 mm solid rod, one square, one round

• Electro Galvanized finish







Powder Coated Temporary Steel Fencing , Temporary Construction Fence Panels





Application of temporary fence



Garden Fence, Farm Fence, Residential Fence, Highway Fence

Railway Fence, Balcony Fence, Stadium Fence, Airport Fence

Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence
