12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing

12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing

  • 12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing
  • 12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing
12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Certification: ISO9001,CE
Model Number: CP-007
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: In steel pallet
Delivery Time: 15 days after receiving the deposit
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description
Material: Low Steel Q235 Size: 6ft X 12ft,6ft X 10ft
Rails No.: 6 Or 5 Tubing: 2’’ Or 1 3/4’’ With 19 Gauge
Brace: "Z" Brace, U-Support Accessories: 2 Pin-latch , And 2 J-legs
Surface Finish: Galvanized And Powder Coated Color: Black, Green
High Light:

portable corral panels

,

metal corral fencing

12ft Galvanized Corral panels 5′ and 6′ tall corral panels


Corral panels, also called cattle panels, horse pen, cow panels or horse fence panels, are popular in farmland of oversea countries, such as Australia, the USA and New Zealand and so on. Because cow panels surface is smooth and there is no sharp edge which can effectively prevent livestock from getting injured.

The Corral Panel is designed with the security of your livestock. This high quality panel has squared corners without sharp edges, and is made of extremely durable with tube that keep your Corral safely enclosed.

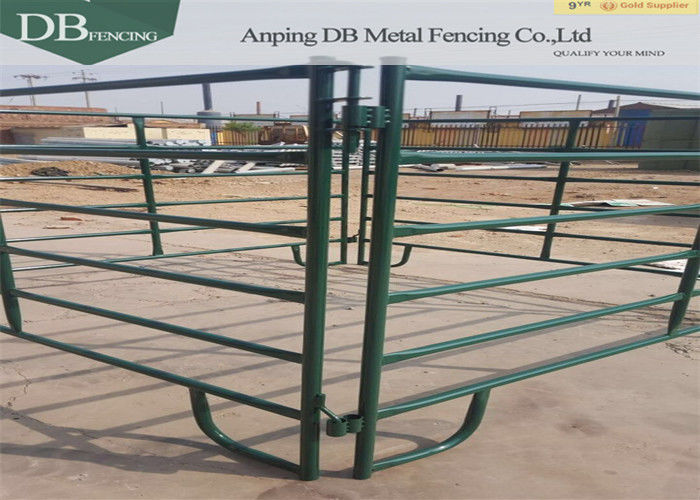

12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing 0


1. Corral Panels Specification



Corral panel is designed with horse and rider safety and is ideal for round pen work, exercise, lessons and training. Available in 5′ and 6′ tall configurations, but 6' is recommended for heavy training and breaking. Straight end posts with quick-pin latch for easy hookup. 5′ tall panels available in 10′, 12′ and 16′ lengths. 6′ tall panels only available in 12′.



Panel Size Tubing O.D. & Wall Thick Bars No. Vertical Brace Accessories Surface Finish
10 ft. (L) x 5 ft. (H) 2’’ or 1 3/4’’ with 19 Gauge 6 1 pcs of "Z" Brace, u-Support or Tubing Brace 2 pin-latch , and 2 J-legs Galvanized and Powder Coated
12 ft. (L) x 5 ft or 6 ft. (H) 2’’ or 1 3/4’’ with 19 Gauge 6 2 pcs of “Z” Brace, u-supports or Tubing Brace 2 pin-latch , and 2 J-legs Galvanized and Powder Coated
16 ft. (L) x 5 ft. (H) 2’’ or 1 3/4’’ with 19 Gauge 6 3 pcs of “Z” Brace, u-supports or Tubing Brace 2 pin-latch , and 2 J-legs Galvanized and Powder Coated


2. Corral Panel Accessories



The Corral Panel is specifically designed for portability. A quick-pin latch system allows this panel to assemble easily, while special J-shaped legs provide the freedom to move it around without getting stuck to the ground.



12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing 1


3. Corral Panels Qiality Testing



The Corral Panel has 1 3/4 inch or 2 inch in diameter tubing to provide ultimate strength and protection. With full welding and hot dipped galvanized finish, we can be sure that this panel will last for years.


12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing 2



4. Corral Panels Gate

  • 4 ft. (L) Economy Gate with 8 ft.(H) Frame
  • 6 ft. (L) Utility Gate with 8 ft.(H) Frame. 8 ft (Arch), 6 ft (Wide Opening), 1 3/4 in (Tubing), 19 gauge
  • Panel Corral 10 Ft with Gate- 8' arch, 4' gate, 6' panel. 1 3/4" rounded tubing with full welded saddle joints
  • 9′ arch with 6′ wide opening
  • Tarter 4' Walk Through Arch Gate- lengths with an 8' arch



12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing 3


5. Corral Panels Packing


In steel pallets to the 1x40'HC.


12ft Galvanized Corral Fence Panels , Temporary 5′ And 6′ Tall Metal Corral Fencing 4
