Sliding Gate Horse Yard 48V 800W Solar Energy Power System

Product Details:

Place of Origin:	Anping,China
Brand Name:	DB Fencing
Certification:	ISO9001
Model Number:	HP---001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	In steel pallet or wooden case
Delivery Time:	10-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10-15 days for one container

Contact Now

All Products

Australian Temporary Fencing (47)

Canada Temporary Fence (82)

Temporary Chain Link Fence (21)

Steel Picket Fence (53)

Corral Fence Panels (38)

Welded Wire Fence (41)

Steel Star Pickets (28)

Chain Link Fence (21)

Fruit Tree Covers (8)

Temporary Hoarding Panels (3)

FRP Grating (34)

Water Filled Barrier (10)

Grip Strut Grating (7)

Mesh Farm Gates (15)

Hinge Joint Fence (19)

Stainless Steel Wire Mesh Screen (29)

Detailed Product Description

Sliding Gate:	5.0m Width X 2.4m Height	Motor:	800W
Solar Panel:	360w X 4 Pcs	Battery:	12v X 4 Pcs
Solar Inverter:	3000w 48V	Cable:	4mm2 PV Cable 50M,25M Black 25M Red
High Light:	800W Solar Energy Power System , 48V Solar Energy System , Sliding Gate Monocrystalline Solar Panel

Horse Round Yard Solar Energy Power System For Sliding Gate

In order to supply the large farm or ranch the electric power for horse round yard, we developed a new connect system,

which is Horse Round Yard Solar Energy Power System For Sliding Gate.

1. Horse Round Yard Sliding Gate

Our sliding gate use the 100x100x2.0mm galvanised frame tube, and 100x100x2.0mm bracing, 25x25x1.2mm upright

galvanised tube to be welded fully and strongly, all gate powder coated black color or other.

2. Solar Panel

330W monocrystalline solar panel

A Grade SUNTECH cells of high efficiency 18%

Vmp:34.4V Voc:43.2V Imp:9.6A

Size : 1956*992*40mm

Operating temperature:-40℃~+80℃

25 years life time, CE ROHS approval

> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

Mounting support

> Residential Roof(Pitched Roof)

> Commercial Roof(Flat roof&workshop roof)

> Ground Solar Mounting system

> Vertical wall solar mounting system

> All aluminum structure solar mounting system

> Car parking solar mounting system

3. Soar Intervert

Inverter: 3000W48VDC,110V/120V/220V/230V/240VAC

City power charger and generator charger build

in,thyroidal type

transformer, conversion

efficiency up to 90%, USA brand IR MOSFET

60A48V MPPT controller ,90%-95% charge efficiency.

LCD display. Overload, overcharge, over-discharge

protection.

4. Solar Battery

Capacity:12V/65AH

Deep cycle maintenance-free gel battery

Service life:6-8 years

5. Accessories

> PV Cable 4mm2 6mm2 10mm2, etc

> AC Cable

> DC/AC Switches

> DC/AC Breakers

> Monitoring device

> AC/DC Combiner box

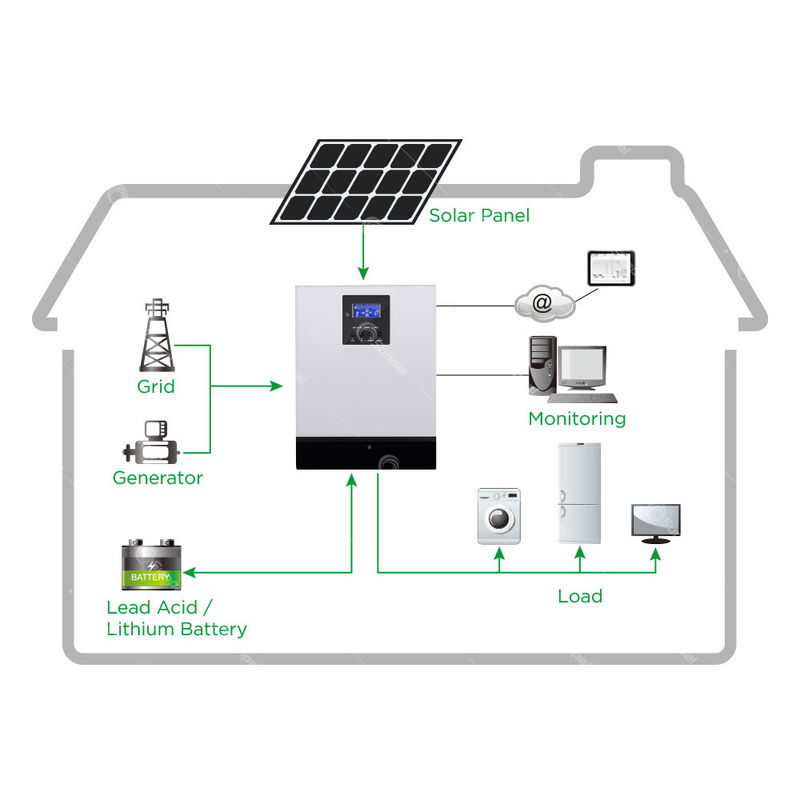

6. Solar energy system

The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
