Anping DB Metal Fencing Co.,Ltd---Top 5 Fencing Supplier
Place of Origin: | Anping,China |
Brand Name: | DB Fencing |
Certification: | ISO9001 |
Model Number: | SS---006 |
Minimum Order Quantity: | 1 Rolls |
---|---|
Price: | FOBtianjin US$2.43 - US$75.69 / Roll |
Packaging Details: | In wooden carton |
Delivery Time: | 10 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10 days |

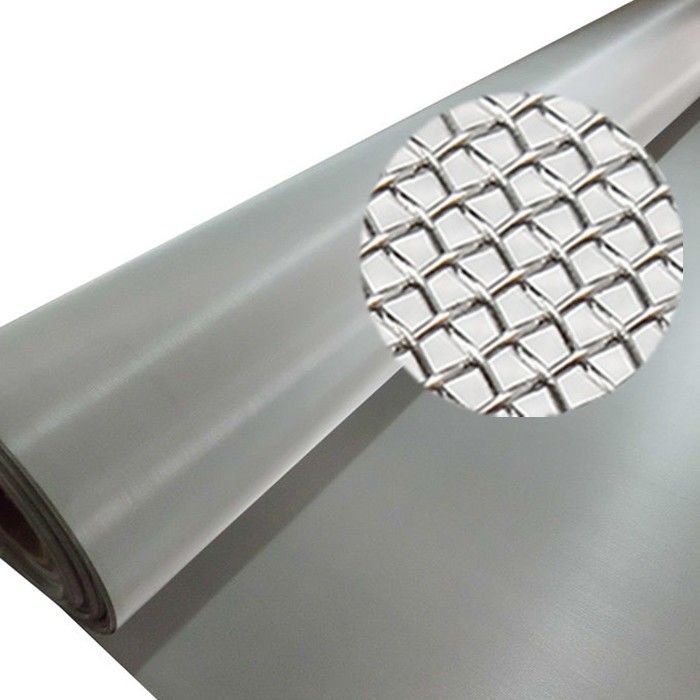

Product Name: | 20 25 30 50 80 100 150 Mesh Stainless Steel 304 Woven Wire Cloth Screen | Wire Diameter: | 0.02mm-0.5mm |
---|---|---|---|
Mesh: | 1-3500mesh | Width: | 1m,1.2m,1.5m, As Requirement |
Length: | 30m,as Requirement | Usage: | Filter |
High Light: | 0.5mm Stainless Steel Wire Cloth,30m Filter Wire Mesh,150 Micron 310S Wire Mesh |
1. Material: AISI302, 304, 316, 316L, 310S, 410, 430, 904L, 2205, 2507, etc
2. Wire Diameter: 0.015-2.8mm
3. Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
4. Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.
5.Features:
Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life
6.Application:
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
Stainless Steel Wire Mesh |
||||||
Mesh/inch |
Wire Diameter |
Aperture |
|
Mesh/inch |
Wire diameter |
Aperture |
2mesh |
1.80 |
10.90 |
|
60mesh |
0.15 |
0.273 |
3mesh |
1.60 |
6.866 |
|
70mesh |
0.14 |
0.223 |
4mesh |
1.20 |
5.15 |
|
80mesh |
0.12 |
0.198 |
5mesh |
0.91 |
4.17 |
|
90mesh |
0.11 |
0.172 |
6mesh |
0.80 |
3.433 |
|
100mesh |
0.10 |
0.154 |
8mesh |
0.60 |
2.575 |
|
120mesh |
0.08 |
0.132 |
10mesh |
0.55 |
1.990 |
|
140mesh |
0.07 |
0.111 |
12mesh |
0.50 |
1.616 |
|
150mesh |
0.065 |
0.104 |
14mesh |
0.45 |
1.362 |
|
160mesh |
0.065 |
0.094 |
16mesh |
0.40 |
1.188 |
|
180mesh |
0.053 |
0.088 |
18mesh |
0.35 |
1.060 |
|
200mesh |
0.053 |
0.074 |
20mesh |
0.30 |
0.970 |
|
250mesh |
0.04 |
0.061 |
26mesh |
0.28 |
0.696 |
|
300mesh |
0.035 |
0.049 |
30mesh |
0.25 |
0.596 |
|
325mesh |
0.03 |
0.048 |
40mesh |
0.21 |
0.425 |
|
350mesh |
0.03 |
0.042 |
50mesh |
0.19 |
0.318 |
|
400mesh |
0.025 |
0.0385 |
Width of Stainless Steel Wire Mesh: 0.6m-8m
|
