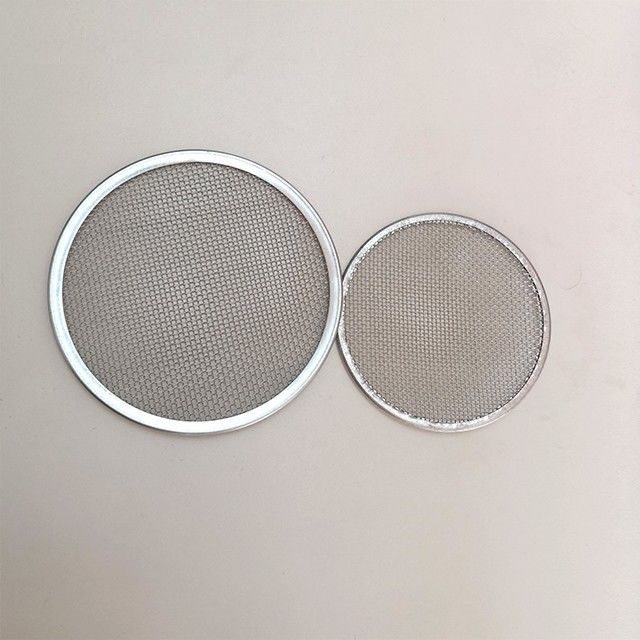

30m/Roll 650 Mesh Oil Filter SS410 Wire Mesh Screen

30m/Roll 650 Mesh Oil Filter SS410 Wire Mesh Screen

  • 30m/Roll 650 Mesh Oil Filter SS410 Wire Mesh Screen
30m/Roll 650 Mesh Oil Filter SS410 Wire Mesh Screen
Product Details:
Place of Origin: Anping,China
Brand Name: DB Fencing
Certification: ISO9001
Model Number: SS---009
Payment & Shipping Terms:
Minimum Order Quantity: 1 Rolls
Packaging Details: In wooden carton
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 days
Contact Now
Detailed Product Description
Product Name: Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430 Material: Ss201 304 304L 316 316L Stainless Steel Wire
Weave Style: Plain/twill/dutch Weave Hole Shape: Square Hole
Mesh Count: 2-650 Mesh Length: 30m/roll Or Customized
High Light:

SS410 Wire Mesh Screen

,

30m/Roll Wire Mesh Screen

,

650 Mesh SS410 Wire Screen

Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430



Our primary focus is the manufacture of woven wire mesh and cloth, especially in stainless steel, for industrial uses,

chemical fiber, mining, filtration, and a wide range of uses. Stainless Steel Wire Mesh & Cloth, as an ideal filter medium,

stands out when solutions for precise filtration and excellent corrosion resistance are needed. It excels in giving

problem-free screening and is easily cleanable with excellent durability. The space wire weaves in square opening or

rectangular openings can be woven down to a fineness of 5 micron aperture, also there are many combinations of filter

weaves with retention in the micron range.



Product Name

stainless steel wire mesh price per meter

Material

304,304L , 316,316L etc

Width

1m ,1.22m , Or can be customized any size

Mesh Aperture

25-4000 micron, or customized aperture

Mesh count

1mesh - 635mesh

Brand

PFM

OEM

acceptable

Application

liquid filter, rosin press, oil filter, paint filter



Specifications



Stainless Steel Square Woven Mesh

Weave
Type

Mesh
Count

Wire Dia.
(Inch)

Width of Opening
(Inch)

Open Area
(%)

Weigh Per 100 sq'
based on 304ss

Opening
(Micron)

Plain

2 x 2

.063

.4370

76.4

51.7

11119

Plain

3 x 3

.0540

.2790

70.1

57.3

7099

Plain

4 x 4

.0470

.2030

65.9

58.2

5165

Plain

5 x 5

.0410

.1590

63.2

55.4

4046

Plain

6 x 6

.0350

.1320

62.7

48.6

3359

Plain

6 x 6

.0320

.1350

65.6

20.7

3435

Plain

7 x 7

.0320

.1110

60.4

47.5

2824

Plain

7 x 7

.0280

.1150

64.8

36.2

2926

Plain

8 X 8

.0250

.1000

64.0

32.9

2545

Plain

9 X 9

.0250

.0860

59.9

37.3

2188

Plain

9 X 9

.0230

.0880

62.7

31.4

2239

Plain

10 x 10

.0250

.0750

56.3

41.6

1908

Plain

11 x 11

.0230

.0680

56.0

38.8

1730

Plain

11 x 11

.0200

.0710

61.0

29.1

1807

Plain

12 x 12

.0200

.0630

57.2

31.9

1603

Plain

14 x 14

.0200

.0510

51.0

37.6

1298

Plain

16 x 16

.0180

.0445

50.7

34.8

1132

Plain

18 x 18

.0170

.0386

48.3

35.1

982

Plain

20 x 20

.0200

.0300

36.0

55.8

763

Plain

30 x 30

.0120

.0213

40.8

29.7

542

Plain

30 x 30

.0095

.0238

51.0

18.2

606

Plain

40 x 40

.0100

.0150

36.0

27.9

382

Plain

50 x 50

.0055

.0145

52.6

10.1

369

Plain

60 x 60

.0060

.0107

41.2

14.8

272

Plain

60 x 60

.0045

.0122

53.3

8.1

310

Plain

80 x 80

.0055

.0070

31.4

17.1

178

Plain

100x100

.0045

.0055

30.3

14.3

140

Plain

100x100

.0040

.0060

36.0

11.1

153

Plain

120x120

.0026

.0058

47.3

5

148

Plain

150x150

.0026

.0041

37.4

7.2

104

Plain

165x165

.0019

.0042

47.1

4.2

107

Plain

180x180

.0023

.0033

34.7

7.5

84

Plain

200x200

.0019

.0030

60.6

3.6

77

Plain

230x230

.0014

.0029

46.0

3.4

74

Plain

250x250

.0016

.0024

36.0

4.3

61

Twill

270x270

.0016

.0021

32.2

4.8

53

Plain

300x300

.0012

.0018

29.7

3

46

Twill

325x325

.0014

.0017

30.0

4.3

43

Twill

400x400

.0011

.0014

31.4

3.4

36

Twill

500x500

.0010

.0010

25.0

*

25

Twill

635x635

.0008

.0008

25.0

*

20



stainless wire mesh
Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430
Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430
Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430
Oil Filter Stainless Steel Wire Mesh 304 316 316L 410 430
