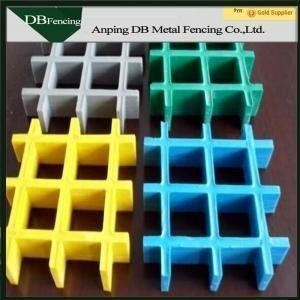

FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover

FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover

  • FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover
FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover
Product Details:
Place of Origin: Hebei, China
Brand Name: DB
Model Number: DB-014
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Contact Now
Detailed Product Description
Name: Fiberglass Reinforced Plastic Grating
High Light:

fibreglass grating

,

grating frp



FRP Grating



Product Description

FRP grating refers to Fiberglass Reinforced Plastic grating, it is a type of firm structure made from fiberglass, cast resin and then molded or pultruded into grating plate. This type of grating has outstanding bi-directional mechanical properties, which is stronger than the other types of gratings.

The hole type of FRP grating can be square or rectangular. FRP grating has various specs with different thickness, opening size and overall sizes. The different specs can be used in different applications.

FRP grating has a wide range of applications, such as stair treads, walkways, drainage cover and other applications. Here are all types of FRP gratings for choice. Just choose them according to your requirements. If you have other requirements, just tell us and we will customize them for you.

1. FRP Grating Material:

1) Fiberglass:

Fiberglass component

Specs

Feature

Applications

non-alkali thick yard

2400 TEX or 4800TEX

Excellent penetration performance with resin matrix solid combination, can make the products with excellent mechanical properties and corrosion resistance

Applied to require high strength and corrosion resistance

medium-alkali thick yard

2400TEX

With excellent penetration, can combine with resin matrix solid, good resistance to acid

Applied to the alkali corrosion environment

2) Resin Systems:



Resin Type

Resin Base

Description

Corrosion Resistance

Flame Spread Rating ASTM E84

Available colors

Max. Oper. Temp.

Type VEFR-20

Vinyl Ester

Superior Corrosion Resistance and Fire Retardant

Excellent

Class 1, 20 or less

Dark Gray, Orange

230oF

Type IFR-25

Isophthalic Polyester

Industrial Grade Corrosion Resistance and Fire Retardant

Very Good

Class 1, 25 or less

Dark Gray, Green

221oF

Type FG-20

Isophthalic Polyester

Food Grade Corrosion Resistance and Fire Retardant

Very Good

Class 1, 20 or less

Light Gray, Light Green

221oF

Type CFR-25

Orthophthalic Polyester

Moderate Corrosion Resistance and Fire Retardant

Moderate

Class 1, 25 or less

Green Yellow Light Gray Dark Gray

212oF

Type MP-4

Phenolic

Low Smoke and Superior Fire Resistance

Very Good

Class 1, 5 or less

Reddish-Brown

356oF

Type IFR-10

Isophthalic Polyester

Industrial Grade Corrosion Resistance and Extra Fire Retardant

Very Good

Class 1, 10 or less

Custom

221oF



2. FRP Grating Types:



FRP grating has various types for your choice. It can be classified into different types according to the

different standard. The common classification standard is technology and surface. Here are the detailed

types of FRP grating, just refer to them and choose the perfect type suitable for you.



  • According to the technology
    • Moldered FRP grating.
    • Pultruded FRP grating.



  FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 0 FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 1



  • According to the surface
    • Common surface.
      • Concave surface.
      • Polished smooth surface.
      • Sanding surface.
    • Covered surface.
      • Smooth cover surface.
      • Gritted cover surface.
      • Checker plate cover surface.



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 2



3. Processing of FRP Grating:  Process: Modeling------Paste and curing------Stripping

and repair----Packing



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 3



4. Fiberglass  Grating Specifications:



Standard Panel Sizes - 4' x 12'

Standard Panel Heights - 1", 1.5 ", 2"

Standard Panel Configurations

Square Mesh

Rectangular Mesh

Mini Square Mesh

All with or without surface grit



Item

Depth

?mm?

Mesh Size?mm?

Size
?mm?

Open Area

Weight? kg/m 2 ?

1

15

38 × 38

1220 × 3660

72%

6.00

2

15

20 × 20(up)
40 × 40(Down)

1247×4047?1007×4047

42%

9.00

3

25

38 ×38

997 × 3050 ? 1220 × 3660

69%

12.50

4

25

40 × 40

1007 × 3007 ?1007 × 4007
1007 × 4047
1007 × 4007 ? 1247 × 4047

67%

12.50

5

25

25 × 100

1009 × 3007 ?1209 ×3657

67%

14.00

6

30

38 × 38

1220 × 3660 ?997 × 3050

69%

15.00

7

30

40 × 40

1007 × 3007 ? 1007 × 4007
1007 × 4047 ?1247 × 4047

67%

15.00

8

30

25 × 25(up)
50 × 50(Down)

1220 × 3660

49%

22.00

9

30

20 × 20(up)
40 × 40(Down)

1000 × 4000?1247×4047

42%

18.50

10

30

8 × 8(up)
40 × 40(Down)

1007 × 4047

26%

24.50

11

38

38 × 38

997 × 3050 ? 1220 × 3660
1525×4000

68%

19.70

12

38

38× 152

1225×3665

70%

17.50

13

38

20 × 20(up)
40 × 40(Down)

1007 × 4007?1247×4047

42%

22.50

14

40

40 × 40

1007 × 3007 ? 1007 × 4007
1007 × 4047 ?1247 × 4047

67%

20.00

15

40

20 × 20(up)
40 × 40(Down)

1247 × 4047

42%

23.70

16

50

50.7 × 50.7

1225× 3660

69%

22.00

17

60

38 × 38

1220 × 3660

47%

51.00

18

P38

38 × 38

1230 × 3670

68%

17.50

19

P30

38 × 38

1220 × 3660

69%

14.00



25 mm thick: suitable for general drains, groove width diameter does not exceed 30 cm, bearing about 3 ton car.

30 mm thick: suitable for drainage and car wash station, the following support is better no more than 40 cm,

the distance between bearing about 3.5 tons of car.

38 mm thick: for drainage and car wash station, the following support spacing (horizontal and vertical),

it is better to not more than 50 cm carry 4 tons of car.

 50 mm thick: suitable for sewage treatment plant, and can meet any construction drawings design requirements.



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 4



5. FRP Grating Packign And Loading:



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 5



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 6



6. FRP Grating Post:



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 7



7. FRP Grating Clips:



FRP Fiberglass Reinforced Plastic Grating For Stair Treads / Walkways / Drainage Cover 8
