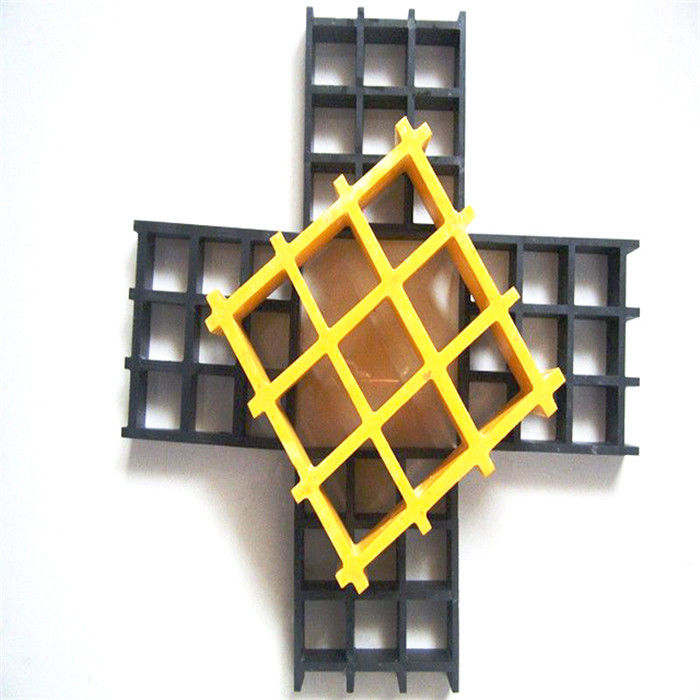

1524X4000mm Gritted Thick 38mm Fiberglass Grating Panels

1524X4000mm Gritted Thick 38mm Fiberglass Grating Panels

  • 1524X4000mm Gritted Thick 38mm Fiberglass Grating Panels
1524X4000mm Gritted Thick 38mm Fiberglass Grating Panels
Product Details:
Place of Origin: China
Brand Name: DB Fencing
Certification: ISO9001,ABS,DNV
Model Number: FRP---017
Payment & Shipping Terms:
Minimum Order Quantity: 50 Panels
Packaging Details: In steel pallet with plastic film
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 2000 sqm/ 5 days
Contact Now
Detailed Product Description
Product Name: 1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick UV Inhibiter: UV-9
Surface: Smooth, Gritted, Concave Or Embeded Gritted Panel Size: 1524X4000mm, 1220X4235/4000/3660mm, 1000X4007mm
Bearing Bar Thickness: 7.0 / 5.0 Mm Specification: 38 X 38 X 38 Mm FRP Grating
High Light:

38mm Fiberglass Grating Panels

,

Gritted Fiberglass Grating Panels

,

1524X4000mm FRP Grating

1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick

Brief Introduction of Fiberglass Grating Panels

Fiberglass Reinforced Plastic (FRP) is a plank shaped material cured in the matrix of unsaturated resins including

isophthalic, orthophthalic, vinyl ester and phenolic, with reinforced frame of fiberglass roving through a special

production process, with a certain rate of open meshes.


Properties of Powergrate FRP Molded Gratings:

1. Corrosion and chemical resistance


Corrosion is a major problem for metal or wooden grating, stair treads and other products in many different industries

such as chemical plants, food and beverage factories, water and wastewater facilities, power facilities. PowerGrate is

particularly designed to provide safe, long-lasting, economical and worry-free solutions in environments where

chemicals and other corrosive materials attack and destroy metal or wood. According to different environmental

requirements, such resins as orthophthalic polyester, isophthalic polyester, vinyl ester or phenolic are chosen as matrix material.


2. High strength-to-weight ratio


We manufactured as a composite of continuous fiberglass strands and high
quality resin is integrally constructed for strength, but it is less than one-half the weight of steel grating allowing easy removal

for access below floor level and installation with no heavy equipment and less manpower. Properly installed, Our gratings meet

specified load requirements for steel and are more impact resistant than metal.

3. Impact resistance


The impact resistance of Josson grating allows repeated deflection without permanent d
memory, so once the object is removed, the fiberglass grating will fully recover to its original position.


4. Fire retardant


Fiberglass grating has flame spread rating of 25 or less depending on different resin systems as tested in term of ASTM E-84.

Test Report can be offered upon request. Special fire retardant requirements can also be met by adding extra additives.

5. Ergonomic


Employees are experiencing fatigue after standing on solid concrete or heavy non-adjustable galvanized steel platforms all day,

FRP gratings are the best solutions to ease the strain on the backs, feet and legs of workers increasing workers' comfort and

productivity due to its natural slight resiliency that makes them comfortable to stand on for a long period.

6. Slip-resistant


PowerGrate grating has a concave top surface for slip resistance after it is extracted from the mold. Should a grit surface be

specified, the grit would be either bonded to the top of the completed grating as a secondary operation or embedded to the top of

grating before heating, both providing superior slip resistance. Diamond cover top or gritted cover top are also available upon request.

7. Life span


More than 20 years of Life is guaranteed for PowerGrate gratings.

8. Low maintenance


Install it and forget about it. PowerGrate is easy to clean, its open meshes permitting debris to fall through grating panel and preventing hazardous buildup on walking surface.

9. Safety


NON-CONDUCTIVE property makes PowerGrate grating ideally suitable in electrically hazardous locations acting as an insulator.
NON-MAGNETIC property allows PowerGrate grating to be used in sensitive installations where the inherent magnetic properties of

metal grating will prove dangerous.

10. Comprehensive economic efficiency


The cost of PowerGrate grating is about 1.4-1.8 times that of steel grating, installation cost is about 20-40% that of steel grating,

and maintenance cost is about zero. But steel gratings must be maintained every year, and the accumulated cost will be a very high sum. Therefore, the cost of PowerGrate grating is a little higher than that of steel grating, but the comprehensive economic efficiency, plus other advantages, is much higher than that of steel grating.

Resin Type:



Resin Type

Resin Base

Description

Corrosion Resistance

Flame Spread Rating ASTM E84

Max. Oper.
Temp

Type VEFR-25

Vinyl Ester

Superior Corrosion Resistance and Fire Retardant

Excellent

Class 1, 25 or less

230°F
(110°C)

Type VEFR-10

Vinyl Ester

Superior Corrosion Resistance and Enhanced Fire Retardant

Excellent

Class 1, 10 or less

230°F
(110°C)

Type IFR-25

Isophthalic Polyester

Industrial Grade Corrosion Resistance and Fire Retardant

Very Good

Class 1, 25 or less

221°F
(105°C)

Type FG-30

Isophthalic Polyester

Food Grade Corrosion Resistance and Fire Retardant

Very Good

Class 1, 30 or less

221°F
(105°C)

Type CFR-25

Ortho

Moderate Corrosion Resistance and Fire Retardant

Moderate

Class 1, 25 or less

212°F
(100°C)

Type MP-5

Phenolic resin

Low Smoke and Superior Fire Resistance

Very Good

Class 1, 5 or less

356°F
(180°C)

Type
IFR-10

Isophthalic Polyester

Industrial Grade Corrosion Resistance and Extra Fire Retardant

Very Good

Class 1, 10 or less

221°F
(105°C)

Type
O-AN

Ortho

Moderate Corrosion Resistance

Moderate

No

212°F
(100°C)


Fiberglass Type:



Code Name

Type

occasion applicable

E

E-glass

High strength and high corrosion required



1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick
1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick
1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick
1.22m Yellow Grey Fiberglass Grating Panels 38mm Thick
