Anti Slip FRP Molded Grating Sidewalk Frp Walkway With Clip
When it comes to construction and structural design, material selection plays a foundational role for an entire project.
The materials chosen have to consider the scope and use of the structure being built as well as the environmental conditions
the structure will be exposed to. Over the years, there have typically been only a few options when it comes to structural building
materials-wood, aluminum, or steel.
However, with the ever-increasing cost of steel and aluminum imports and their susceptibility to corrosion and wood's vulnerability
to moisture damage- there has to be a better option, and there is.
Fiberglass reinforced plastics (FRP), are an excellent and very capable alternative to traditional materials and offer quite
a few benefits in cost, safety, durability, and strength.
1.Materials
Resin+Fiberglass
Resins are what provide the environmental and chemical resistance to the finished product and are the binding agent of the glass
fibers. At WTHC we apply different variations of resins depending on the environment the products will be used in, Such as:
Vinyl Ester Resin, Orthophlantic Resin, Isophlantic Resin, Phenolic Resin
2. Advantages
Corrosion Resistant Aging Resistance Free Maintenance Light Weight High Strength
Inflaming Retardant
3.Specifications
Part of our FRP grating Size as below. For more size information, pls contact with us.
|
|
Mesh Size
(mm)
|
|
Thickness
(mm)
|
|
Bar Thickness
Top/bottom (mm)
|
|
Standard Panel Size
(mm)
|
|
Open Rate
(%)
|
|
Weight
(Kg/m2)
|
|
|
|
38*38
|
|
25
|
|
7.0/5.0
|
|
1220x3660,1220x4040
|
|
68
|
|
12.7
|
|
|
|
40*40
|
|
25
|
|
5.0/3.0
|
|
1220x3660,1000x4040,1220*4025
|
|
66
|
|
12.5
|
|
|
|
43*43
|
|
25
|
|
5.0/3.0
|
|
1220x3660,1220x2440,1000*4040,1000x2000, 1220x4025, 1220x4025
|
|
64
|
|
10.5
|
|
|
|
38*38
|
|
30
|
|
7.0/5.0
|
|
1220*3660,1000*4040
|
|
68
|
|
15
|
|
|
|
40*40
|
|
30
|
|
5.0/3.0
|
|
1220*4040,1000*4040
|
|
66
|
|
14.5
|
|
|
|
38*38
|
|
38
|
|
7.0/5.0
|
|
1220*3660,1000*4040,1220*2440,1220*4040,1000*4040
|
|
68
|
|
19
|
|
|
|
40*40
|
|
38
|
|
5.0/3.0
|
|
1220*3660,1220*4920,1500*3660,1000*4040
|
|
66
|
|
18
|
|
|
|
50*50
|
|
50
|
|
7.0/5.0
|
|
1220*4015,1000*4040,1220*3660
|
|
78
|
|
21.2
|
|
|
|
53*53
|
|
50
|
|
7.0/5.0
|
|
1220*3660
|
|
77
|
|
22
|
|
|
|
19*19-38*38
|
|
25
|
|
7.0/5.0
|
|
1220*3660
|
|
40
|
|
16.6
|
|
|
|
25*25-50*50
|
|
25
|
|
6.0/5.0
|
|
1220*3660
|
|
40
|
|
15.5
|
|
|
|
25*25-50*50
|
|
25
|
|
6.0/5.0
|
|
1220*3660
|
|
40
|
|
18.6
|
|
|
|
19*19-38*38
|
|
38
|
|
7.0/5.0
|
|
1220*3660
|
|
40
|
|
23.7
|
|
4. Surface
WTHC FRP Grating can be divided into two categories, which are ordinary type and covered type.
Ordinary type
A: concave(formed naturally):anti-slip
B: Gritted: extraordinary anti-slip
C: Smooth: non-slip, generally used in some places that need decoration or other purposes.
Covered type
It is used in places where there is no hole, no liquid leakage, gas play, or special requirement for a hole.
A: Smooth covered grating: non-slip, easy dedusting.
B: Gritted covered grating: best perform at anti-slip property
C: Pattern covered grating: it has a more artistic appeal but not very do a good job at anti-slip function.
5. Application

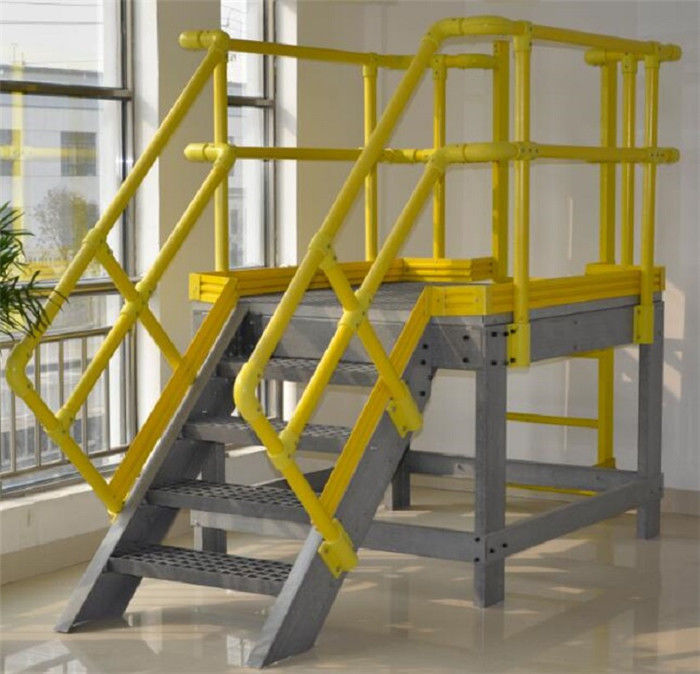

Walkways,Platforms,Trench covers,Swimming pool,Staircase,Floorings,Foot Bridges,Fencing, car parking,Step Treads,
Chemical, Food & Beverage Marine,Oil & Gas,Telecommunications,Industry,Buildings,Constructions,Pharmaceuticals,,Water & Waste Treatment,ShippingTransportation,Architectural
6. Clips
"L" Clip
For securing grating to support frames for moderate load
"M" Clip
To position grating on a support structure & restrain all movement.
"C" Clip
To connect two adjacent unsupported grating bars
