Place of Origin: | Anping,China |
Brand Name: | DB Fencing |
Certification: | ISO9001 |
Model Number: | GS---006 |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | FOBtianjin USD10-25/PC |
Packaging Details: | In steel pallet or wooden case |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10-15 days for one container |
Product Name: | Grip Strut Safety Plank Grating | Material: | Alu Alloy ,galvanized ,stainless Steel ,iron |
---|---|---|---|
Thickness: | 2.0mm 3.0mm 4.0mm | Width: | 200mm/250mm/500mm/750mm/1000mm |
Length: | Max 6000mm | Surface Treatment: | Anodized,Polishing,Powder Coating |
High Light: | grip strut safety grating,grip strut fasteners |

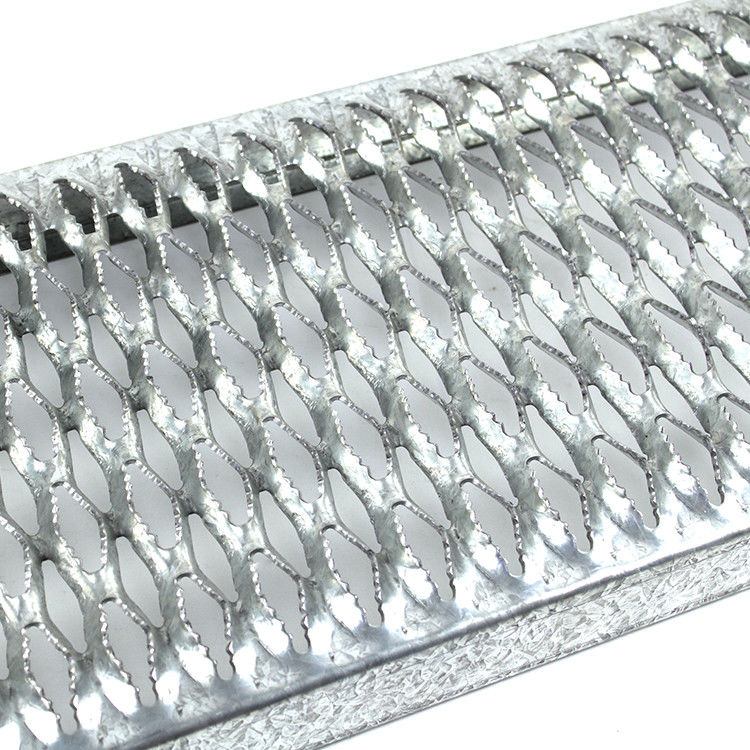

Grip strut safety plank grating is a kind of perforated metal sheets,perforated Metal comes in a
selection of hole shapes, sizes, gauges and material types (including plastic).mainly takes metal
sheet as raw materials, whose hole edges flip or plate surface bulges through punching equipment
to achieve anti-skid purpose. The hole on anti-slip sheet have embossed shape, cruciferous type,
round type, crocodile lip shape and tear type, etc.It has two kinds of the anti-slip perforated sheet.
Grip Strut Safety Plank Grating is a common application of diamond safety grating. Similar to the
diamond safety walkways and diamond safety grating plank, the diamond safety grating stair treads
have serrated diamond holes to supply outstanding anti-slip resistance in every directions.The safety
tread grating have two types: one is standard diamond safety grating stair treads and the other type
is diamond safety grating stair treads with abrasive nosing. The abrasive nosing can supply further
anti-slip resistance performance for the stair treads. It can be used in the heavy duty applications.
Aluminium Serrated Grip Strut Safety Plank Grating for safety stair treads offers excellent slip
resistant performance in various applications. Plank grating is one of types. The material of diamond
safety grating plank are commonly steels, aluminum alloy and stainless steel.
Its application reduces damage and ensures safe operation of the operation workshop.
Standard stair Tread |
|||
Width inches |
Material |
Span inches |
Depth inches |
5" 7" 10" 12" |
13 gauge steel |
up to 30 |
1-1/2" |
|
11 guage steel |
31-48 |
2" |
|
0.125 aluminum |
up to 42 |
2 |
Standard treads end carrier plate sizes |
|||||
Hole pattern |
Nominal width |
A |
B |
C |
D |
2 holes |
5 |
4 15/16 |
1 1/2 |
3/4 |
2 |
|
|
4 15 /16 |
2 |
1 |
2 |
3 holes |
7" |
6 15/16 |
2 |
1 |
2 |
|
|
6 15/16 |
1 1/2 |
3/4 |
4 |
4 holes |
10" |
9 15/16 |
1 1/2 |
3/4 |
7 |
|
|
9 15/16 |
2 |
1 |
7 |
5 holes |
12" |
11 15/16 |
1 1/2 |
3/4 |
9 |
|
|
11 15/16 |
2 |
1 |
9 |
Diamond pattern |
Width |
Channel depth |
Galvanized |
Weight lb/ft |
13 holes |
24 |
5 |
11 Ga., 13 Ga. |
11.8 |
16 holes |
30 |
5 |
11 Ga., 13 Ga. |
13.6 |
16 holes |
36 |
5 |
11 Ga., 13 Ga. |
15.9 |
