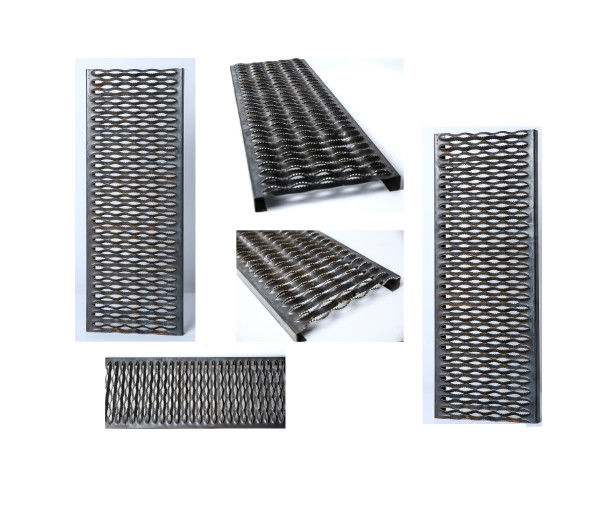

Non Slip Grip Strut Walkway For Work Platforms Catwalks
1. Specification Of Non-slip Grip Strut Walkway
Grip Strut Walkway Material: Pre-galvanized steel, HRPO steel, 5052-H32 mill finish aluminum,
304 or 316 stainless steel.
Grip Strut Walkway Finish: electric galvanized or hot-dipped galvanized.
Grip Strut Walkway Thickness: 11G to 16G for stainless steel.
Grip Strut Walkway Round Plate Width: 5", 7", 10", 12", 18", 24", 30".
Grip Strut Walkway Diamond plate width: 4-3/4" (2 diamond), 7" (3 diamond), 8-1/8" (3 diamond
with abrasive nosing), 9-1/2" (4 diamond), 10-1/2" (4 diamond with abrasive nosing) and 11-3/4"
(5 diamond), 18-3/4" (8 diamond), 24" (10 diamond).
Channel Depth: 1-1/2", 2",2-1/2”, 3", 4".
|
2 Diamond / 9-1/4" Width
|
|
Diamond Pattern
|
Width
|
Channel Depth
|
galvanized
|
Aluminum
|
|
2 Diamonds
|
9-1/4
|
2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
9-1/4
|
2-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
9-1/4
|
3
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
9-1/4
|
4
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
3 Diamond / 13-3/4" Width
|
|
Diamond Pattern
|
Width
|
Channel Depth
|
galvanized
|
Aluminum
|
|
3 diamonds
|
13-3/4
|
2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
13-3/4
|
2-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
13-3/4
|
3
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
13-3/4
|
4
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
5 Diamond / 23-1/4" Width
|
|
Diamond Pattern
|
Width
|
Channel Depth
|
galvanized
|
Aluminum
|
|
5 diamonds
|
23-1/4
|
2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
23-1/4
|
2-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
23-1/4
|
3
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
23-1/4
|
4
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
6 Diamond / 27-3/4" Width
|
|
Diamond Pattern
|
Width
|
Channel Depth
|
galvanized
|
Aluminum
|
|
6 diamonds
|
27-3/4
|
2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
27-3/4
|
2-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
27-3/4
|
3
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
27-3/4
|
4
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
8 Diamond / 36" Width
|
|
Diamond Pattern
|
Width
|
Channel Depth
|
galvanized
|
Aluminum
|
|
8 diamonds
|
36
|
1-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
36
|
2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
36
|
2-1/2
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
|
36
|
3
|
11 Ga., 10 Ga., 9Ga.
|
12 Ga. (.080), 10 Ga. (.100)
|
2. Application Of Non-slip Grip Strut Walkway
Grip Strut Walkway is produced with welded end carrier plates, it uses the same materials with plank.
The pattern can be 2, 3, 4, 5 diamonds. The stair treads are divided into standard stair treads and stair
treads with nosing. The standard stair treads can be used life, traffic, etc. The stair treads with nosing
are more high slip resistance, it has a special usages for industry.
