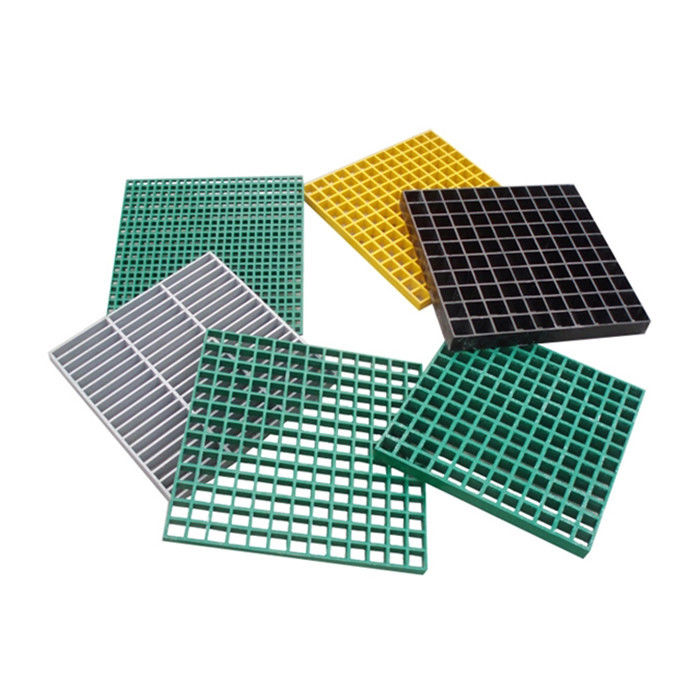

Fiberglass Reinforced Plastic 25mm ASTM D635 FRP Grating

Fiberglass Reinforced Plastic 25mm ASTM D635 FRP Grating

  • Fiberglass Reinforced Plastic 25mm ASTM D635 FRP Grating
Fiberglass Reinforced Plastic 25mm ASTM D635 FRP Grating
Product Details:
Place of Origin: China
Brand Name: DB Fencing
Certification: ISO9001,ABS,DNV
Model Number: FRP---019
Payment & Shipping Terms:
Minimum Order Quantity: 50 Panels
Packaging Details: In steel pallet with plastic film
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 2000 sqm/ 5 days
Contact Now
Detailed Product Description
Product Name: ASTM D635 Industrial Fiberglass Reinforced Plastic Grating Panel Size: 1*2 Meter ; 1.22*3.66 Meter; 1*4 Meter
Height: 25mm 30mm 35mm 38mm 45mm 50mm Color: White, Yellow, Green, Red, Grey...
Packing: Bundled By Belt, Packed In Pallet Lead Time: 15 Days
High Light:

ASTM D635 FRP Grating

,

Fiberglass Reinforced Plastic FRP Grating

,

Height 25mm Fiberglass Grating

ASTM D635 Industrial Fiberglass Reinforced Plastic Grating

FRP Grating Panels are designed to provide long, maintenance- free service life in corrosive industrial environments.

They meet stringent weather, corrosion, and fire-resistance requirements. Engineered resins provide a high resistance

to attack from acids, alkali, solvents, and 100% humidity. Proprietary glass reinforcements give them exceptional

strength and stiffness.



Resin, Fiberglass and Stuffing Selection



Resin

Application Scope

Type O (Orthophthalic type)

Generally used for ordinary corrosive environment and also for sea corrosion, faintly acid corrosion as well as weathering ageing environment.

Type I
( Isophthalic type)

Generally used for the environment with stronger acidic corrosion or general one.

Type V
( Vinyl Ester type)

Generally used for serious corrosive environment with acid, alkali, solvent etc.

Type P
( Phenolic type)

Used for high fire resistance and low areas.



Fiberglass

Fiber Composition

Size

Property

Application Scope

Alkali-free Roving

2400TEX or 4800TEX

It is of good permeability, high bond with resin matrix, which makes the products be of excellent mechanical properties and corrosion resistance.

Used for high strength requirement and corrosion-resistant.

Medium Alkali Roving

2400TEX

It is of good permeability, high bond with resin matrix and high acid-resistance.

Generally used for serious corrosive environment



Stuffing

Stuffing Selection

Property

Application Scope

aluminium hydroxide powder

Flame-retarded, enhanced, oxygen index is above 28.

Flame-retarded, restraining smoke environment.

calcium carbonate powder

Enhanced, moderately lower cost.

No requirement for flame retardance.

No stuffing, pure resin

Good transparency

No requirement for flame retardance, high abrasion resistance.



Molded Grating Specification



Mesh Shape

Thickness
(mm)

Mesh Size
(mm)

Grating Size
(mm)

Weight
(kg/m²)

Open Area
(%)

Normal Square Mesh

13

38×38

1220×3660

5.5

87

13

50×50

1220×3660, 2000×2000

6.5

82

20

38×38

1220×3660

9.2

69

25

38×38

1000×3017, 1000×3000,
1000×3660

12.5

70

25

40×40

1000×2000, 1000×3000, 1000×4000, 1200×3000

13.5

65

30

38×38

1000×3017, 1000×4038, 1220×3660

14.5

65

30

40×40

1000×2000, 1000×3000, 1000×4000, 1200×3000

15.5

53

38

38×38

1000×3017, 1000×4083, 1220×3660

18.5

70

38

40×40

1000×2000, 1200×3000, 1000×4000, 1500×3000

19.5

70

50

50×50

1525×4025, 1220×3660, 1220×4025

21.5

78

63

38×38

1220×3660

52

54

Mini Square Mesh

30

19×19

1000×2000, 1000×3000, 1000×4000, 1200×2000, 1200×4000, 1500×3000

16.5

44

40

19×19

1000×2000, 1000×4000, 1200×2000, 1200×4000

21.5

45

50

19×19

1220×3660

26.5

44

Micro Square Mesh

30

15×15

1000×3000

19.5

45

30

13×13

1000×4083, 1220×3660

18.5

53

38

13×13

1000×4083, 1220×3660

22.5

53

Rectangular Mesh

25

100×25

1000×2000, 1000×3000, 1000×4000

13.5

69

28

100×50

1500×2000, 1500×4100

9.5

58

38

152×38

572×3660

17.5

77

38

152.4×25.4

1220×3660

21.4

56

38

101.6×38.1

1220×3660

16.5

74

Heavy Duty Square Mesh

50

50×50

1220×3660, 1220×4010

21.5

48

55

50×25

1500×3000

30.5

50

60

38×38

1220×3660

45.5

63



FRP Grating used in:

1. Drain Cover,

2. Walkway

3. Deck platform

4. Stair treads

5. Car Washing drain cover



Fiber Reinfored Plastic Grating Bundled by belt, packed in pallet, carton ect.

Packing can be customized.



Molded Grating Advantages

  • Corrosion Resistant

  • Bi-directional Strength

  • Slip Resistant

  • Low Maintenance

  • High Strength to Weight Ratio

  • Fire Retardant

  • Lightweight

  • Impact Resistant

  • Long Service Life

  • Superior Ergonomics

ASTM D635 Industrial Fiberglass Reinforced Plastic Grating
ASTM D635 Industrial Fiberglass Reinforced Plastic Grating
ASTM D635 Industrial Fiberglass Reinforced Plastic Grating
ASTM D635 Industrial Fiberglass Reinforced Plastic Grating
